SDNCN 2525 M 11-M-A

SDNCN 2525 M 11-M-A

$164.31 CAD $169.00 CAD
Skip to product information
SDNCN 2525 M 11-M-A
SDNCN 2525 M 11-M-A

Dormer-Pramet

SDNCN 2525 M 11-M-A

Material ID: 6756587

$164.31 CAD $169.00 CAD

SDNCN 2525 M 11-M-A

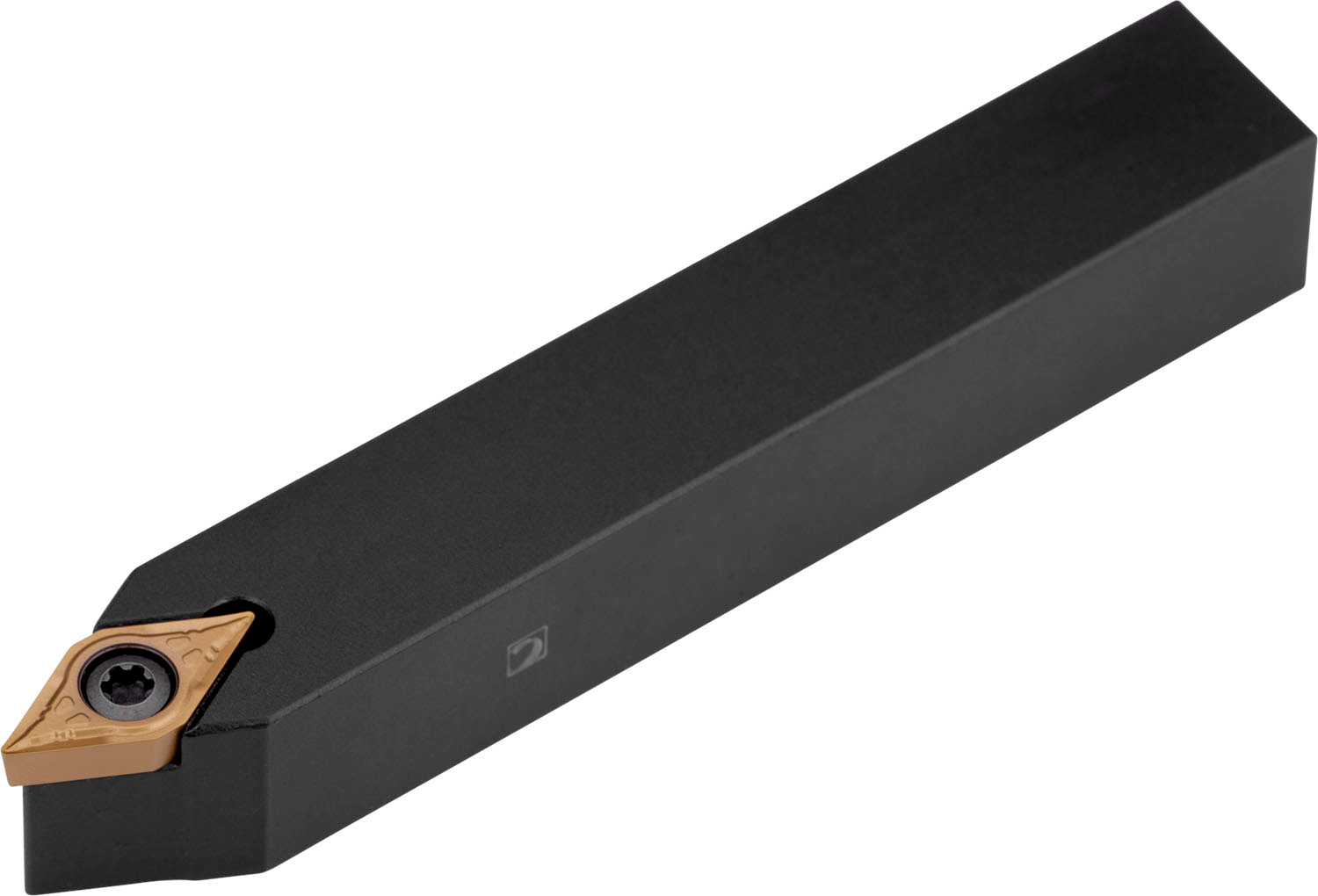

Turning Toolholder ISO S

Material ID: 6756587


Screw clamp turning tool for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525 mm, 3.97 mm thick (ISO designation DC.. 11T3.. ), neutral hand 62°30' side cutting with straight shank, 25 mm tool height x 25 mm width x 150 mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning without shoulder

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6756587
