Dormer-Pramet

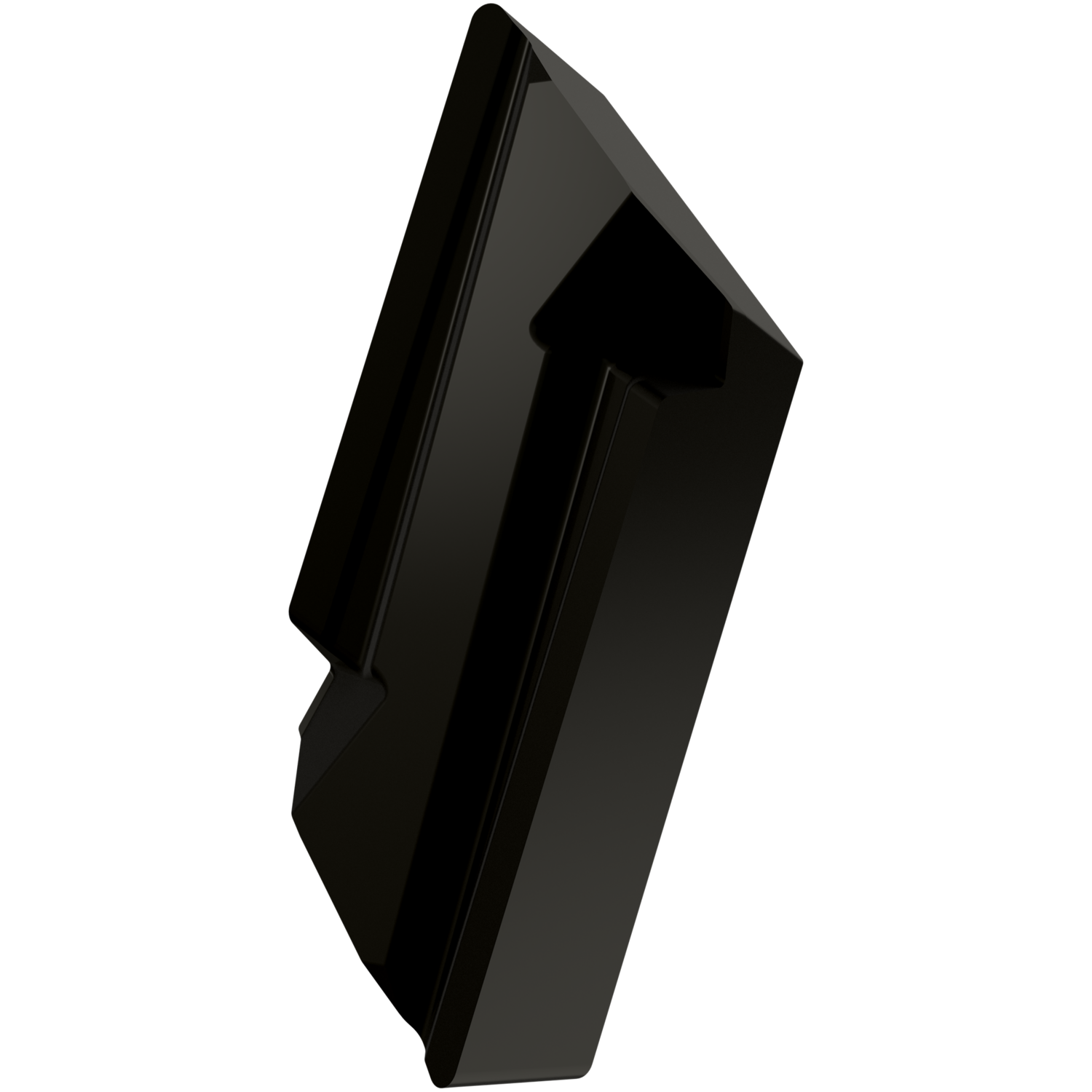

Special design negative turning insert, 55° parallelogram with a main edge length of 16mm, 4.76mm thick, 0.5mm nose radius, indexing accuracy according to ISO-tolerance class-U, chip-breaker 72 with rounded cutting edges, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10-K25, for fine to medium machining of cast-irons with a right handed turning tool

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centres, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6755760
