CCMW 32.52:T5305

CCMW 32.52:T5305

$104.58 CAD $150.50 CAD
Skip to product information
CCMW 32.52:T5305
CCMW 32.52:T5305

Dormer-Pramet

CCMW 32.52:T5305

Material ID: 6755721

$104.58 CAD $150.50 CAD

CCMW 32.52:T5305

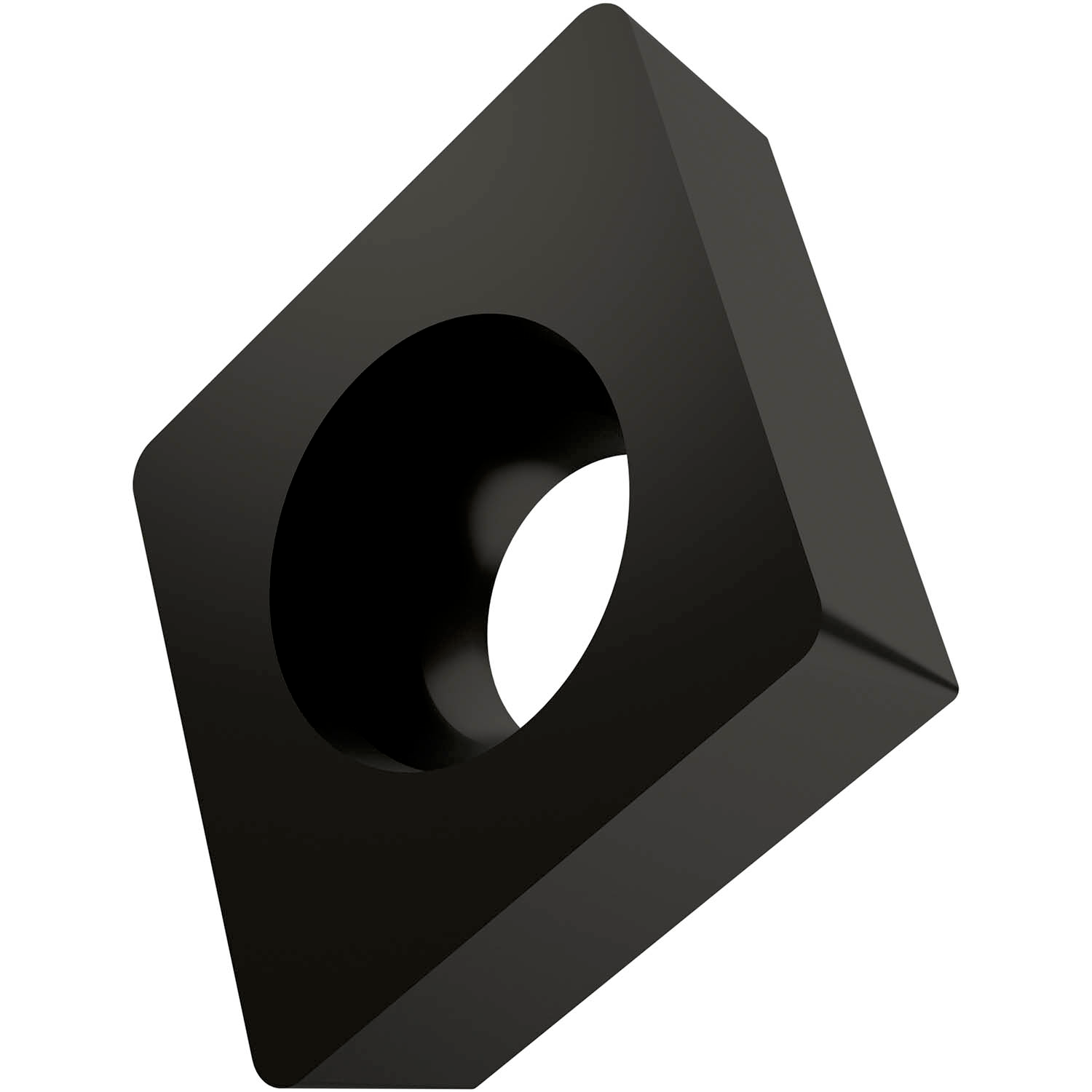

Turning Insert - Positive

Material ID: 6755721


Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 9.525 mm, 3.97 mm thick, 0.8 mm nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T5305, a MT-CVD coated WC-Co carbide within ISO range K01 -K15, for fine to medium machining of cast-irons

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6755721
