Dormer-Pramet

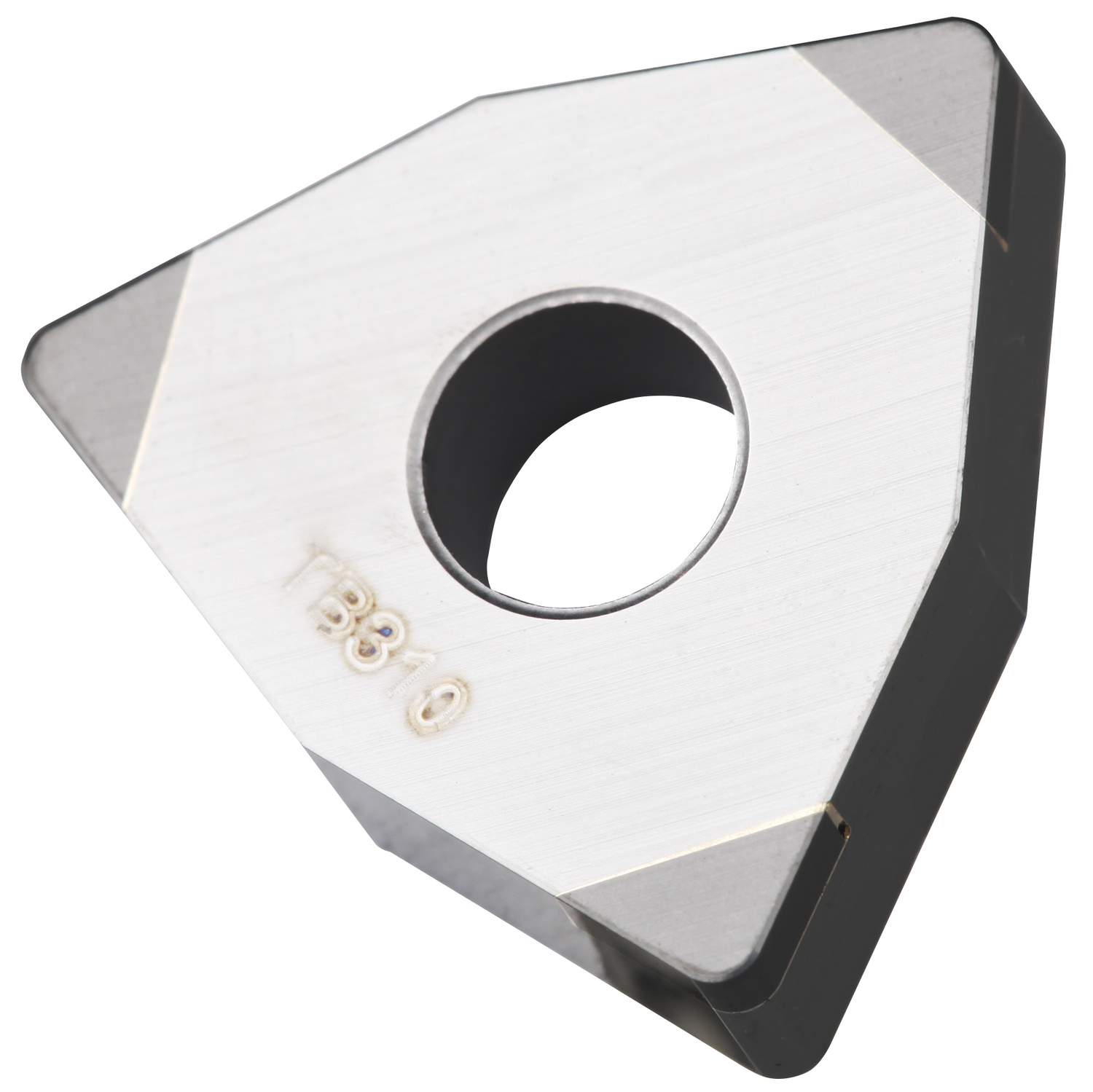

Insert for hard turning with 3 CBN tipped corners on one-side, 80° trigon with inscribed circle diameter of 12.7 mm, 4.76 mm thick, 0.8 mm nose radius, indexing accuracy according to ISO-tolerance class-G, WIPER Geometry with rounded cutting edges and facet T-land -20°/0.1 mm, in grade TB310, an uncoated cubic boron nitride within ISO range H01 -H10, for high-speed machining of hardened materials

Package Quantity: 2

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6755691
