Dormer-Pramet

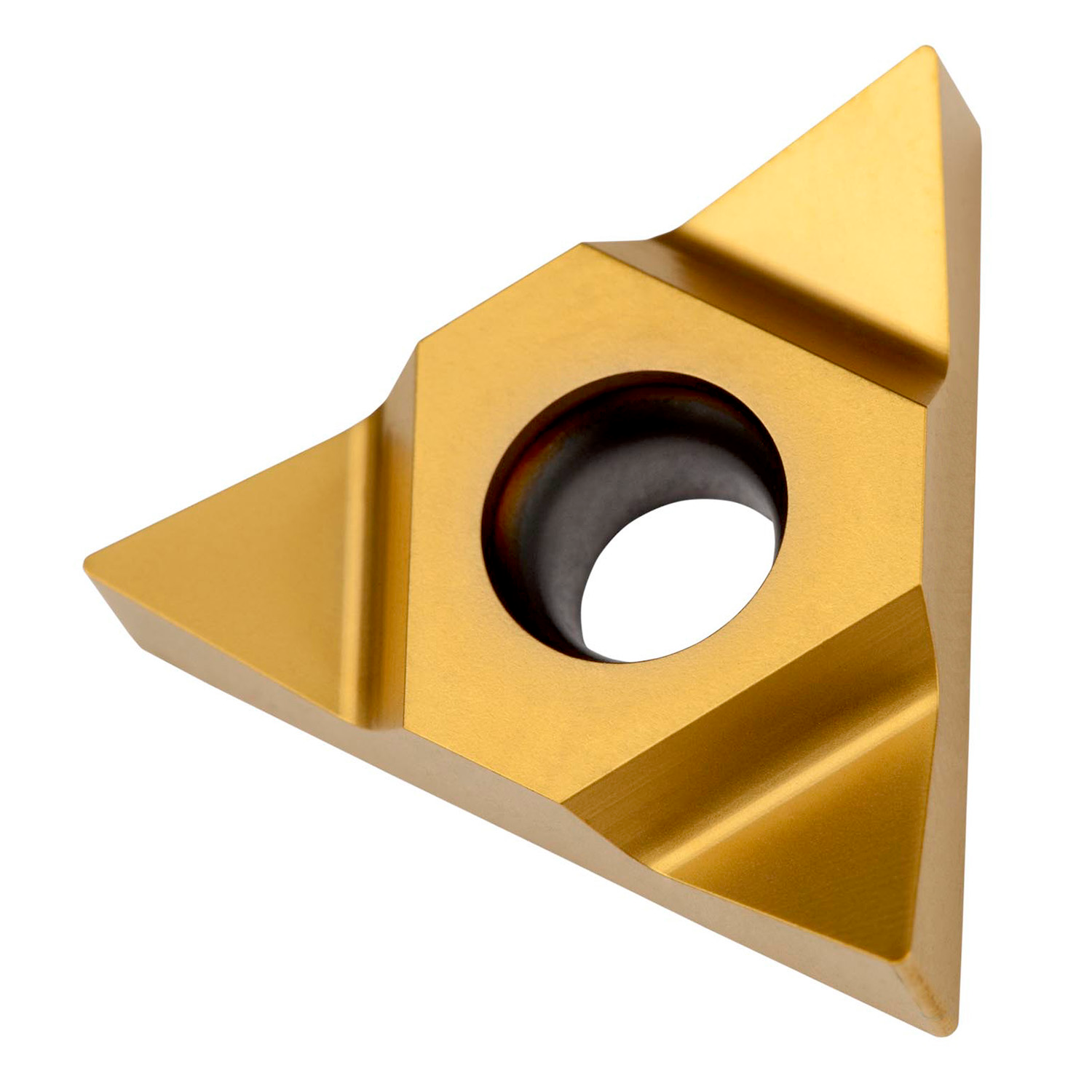

Single-sided threading insert, triangular with an inscribed circle diameter of 12.7 mm, for right and left hand cutting partial profile of ISO-metric and UN internal threads with 5.5 to 8 mm pitch and 4.5 to 3TPI, T8030 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron in combination with a SI(RL)-S thread turning bar

Package Quantity: 5

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6755660
