Dormer-Pramet

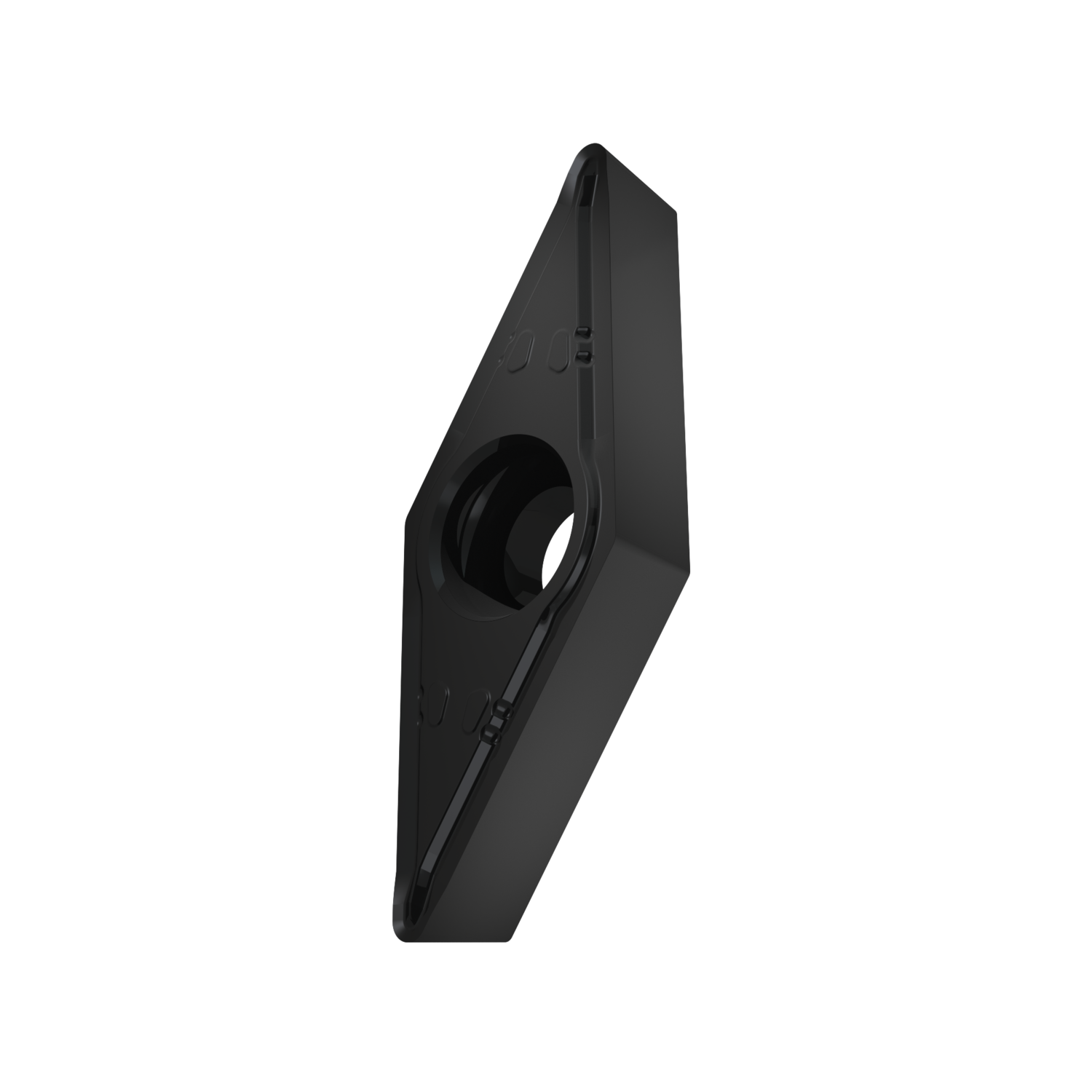

Single-sided positive turning insert, 35° rhomboid with 5° clearance, inscribed circle diameter of 9.525 mm, 4.76 mm thick, 0.8 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker UR with rounded cutting edges, in grade T9310, a MT-CVD coated functionally graded WC-Co carbide within ISO range P01 -P15, for fine to heavy machining of steels

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6755076
