Dormer-Pramet

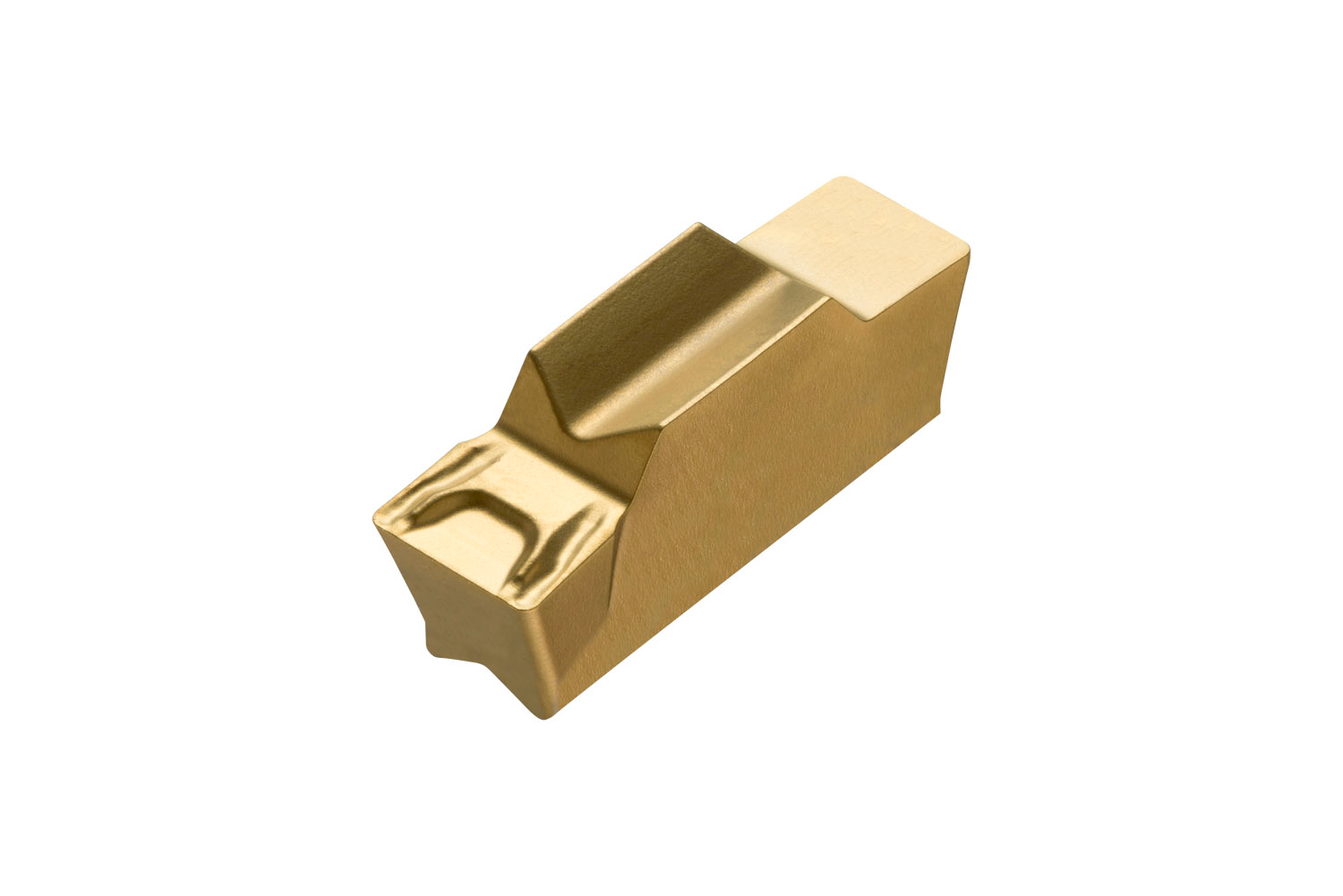

Single ended parting and grooving insert, 16.4 mm long with a 4 mm cutting width and 0.4 mm corner radii, an accuracy according to tolerance class-M and chip-breaker F, grade T8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and M20-M35 for machining of steel and stainless-steel in combination with DORMER PRAMET GF..(RL) 04, GG..(RL) 04 and XLCCN 0416 parting and grooving tools

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6754718
