Dormer-Pramet

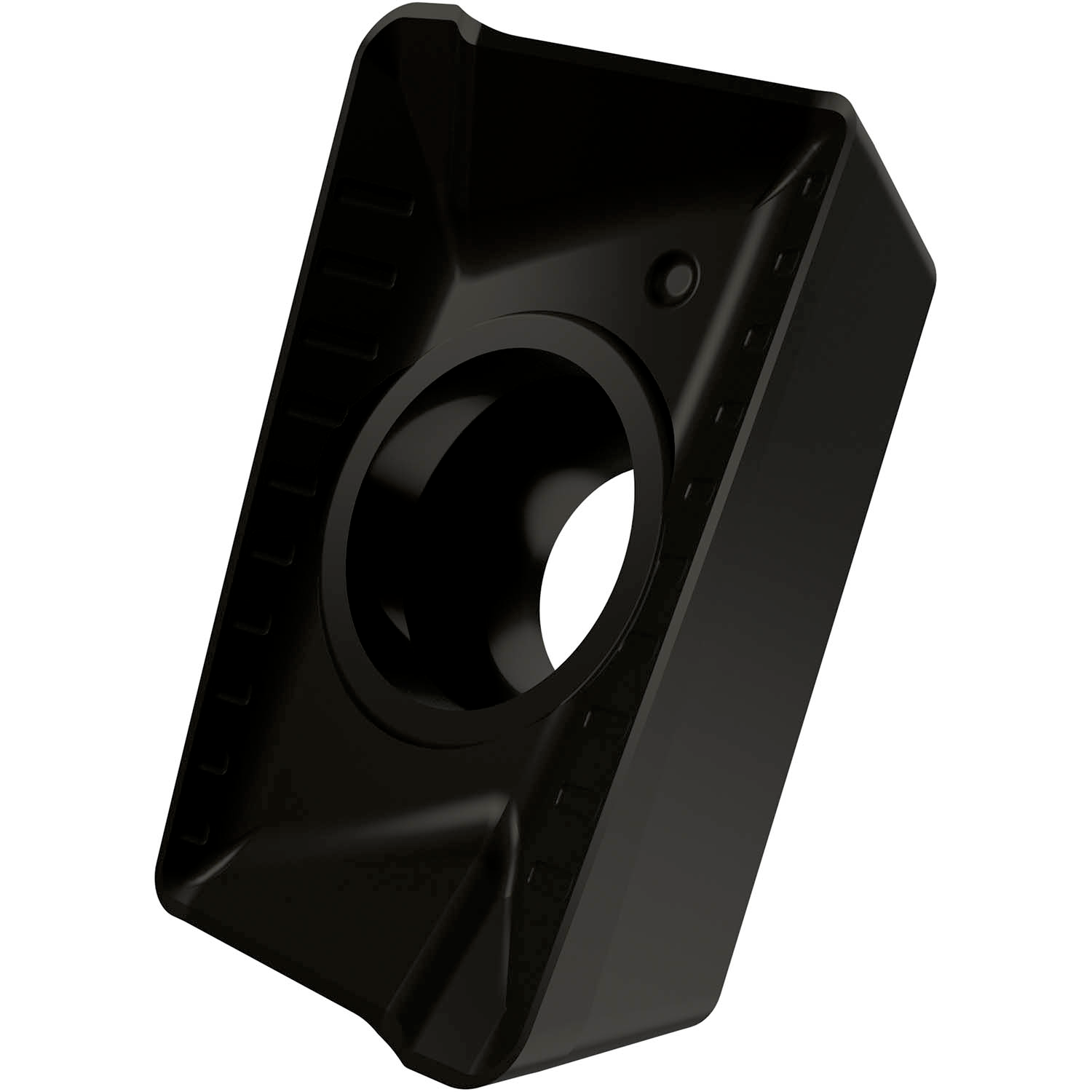

Single-sided milling insert AP.. 10.. with chip-breakers, 85° parallelogram for a maximum depth of cut of 9.0 mm, with 0.5 mm corner radius, an indexing accuracy according to ISO-tolerance class-K and M geometry with rounded cutting edges, M9340 MT-CVD coated WC-Co carbide within ISO-grade range P35 -P50 for machining of steel with shoulder mills SAP10D

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6754683
