Dormer-Pramet

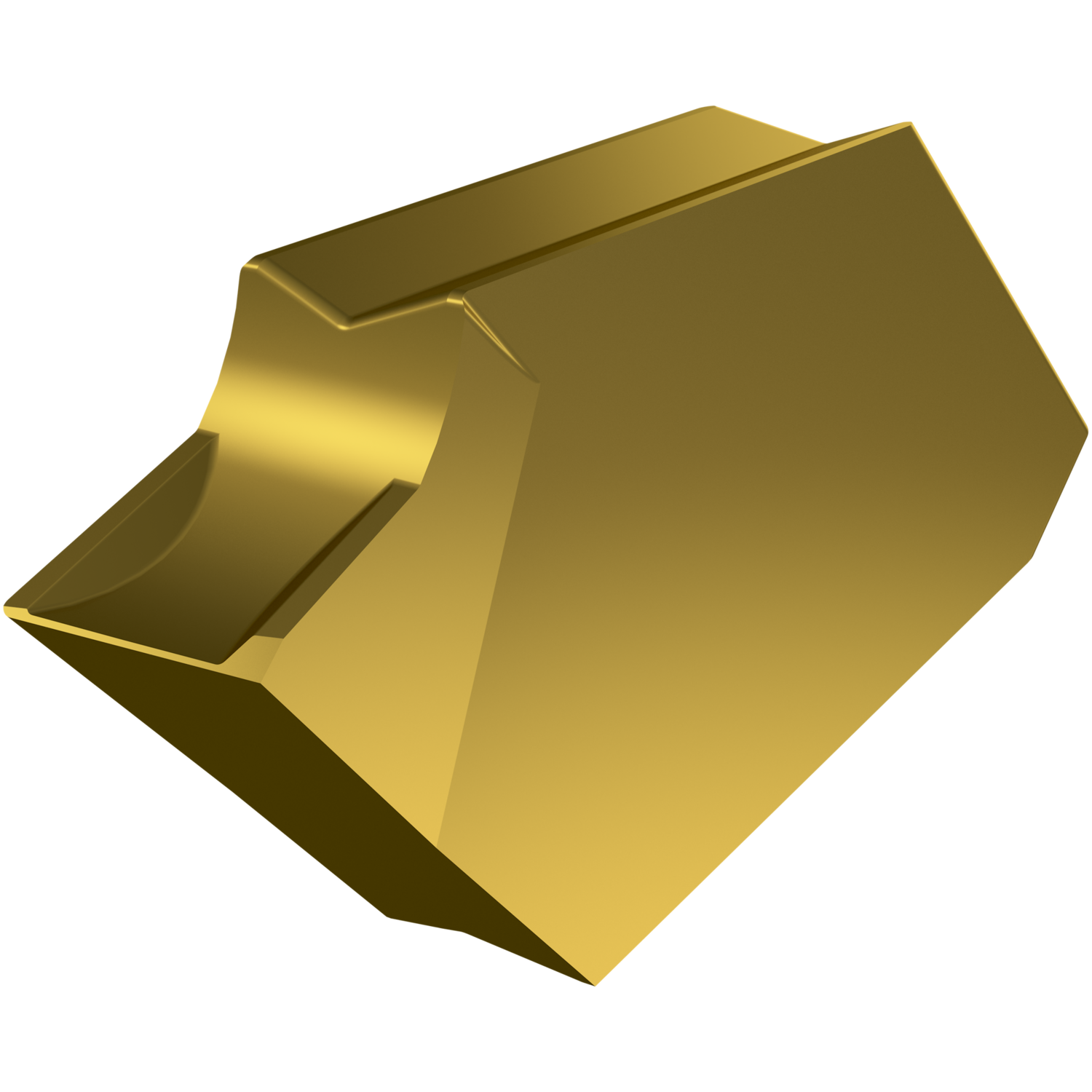

Single ended parting and grooving insert, with a 3 mm cutting width and 0.2 mm corner radii, 5° front angle to reduce pip and burr on the right hand side, an accuracy according to tolerance class-U and cutting edges with facet, grade T8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and K20-K40 for machining of steel and cast-iron in combination with DORMER PRAMET XLCFN 03 and XLCF(RL) 03 parting and grooving tools

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6754327
