Dormer-Pramet

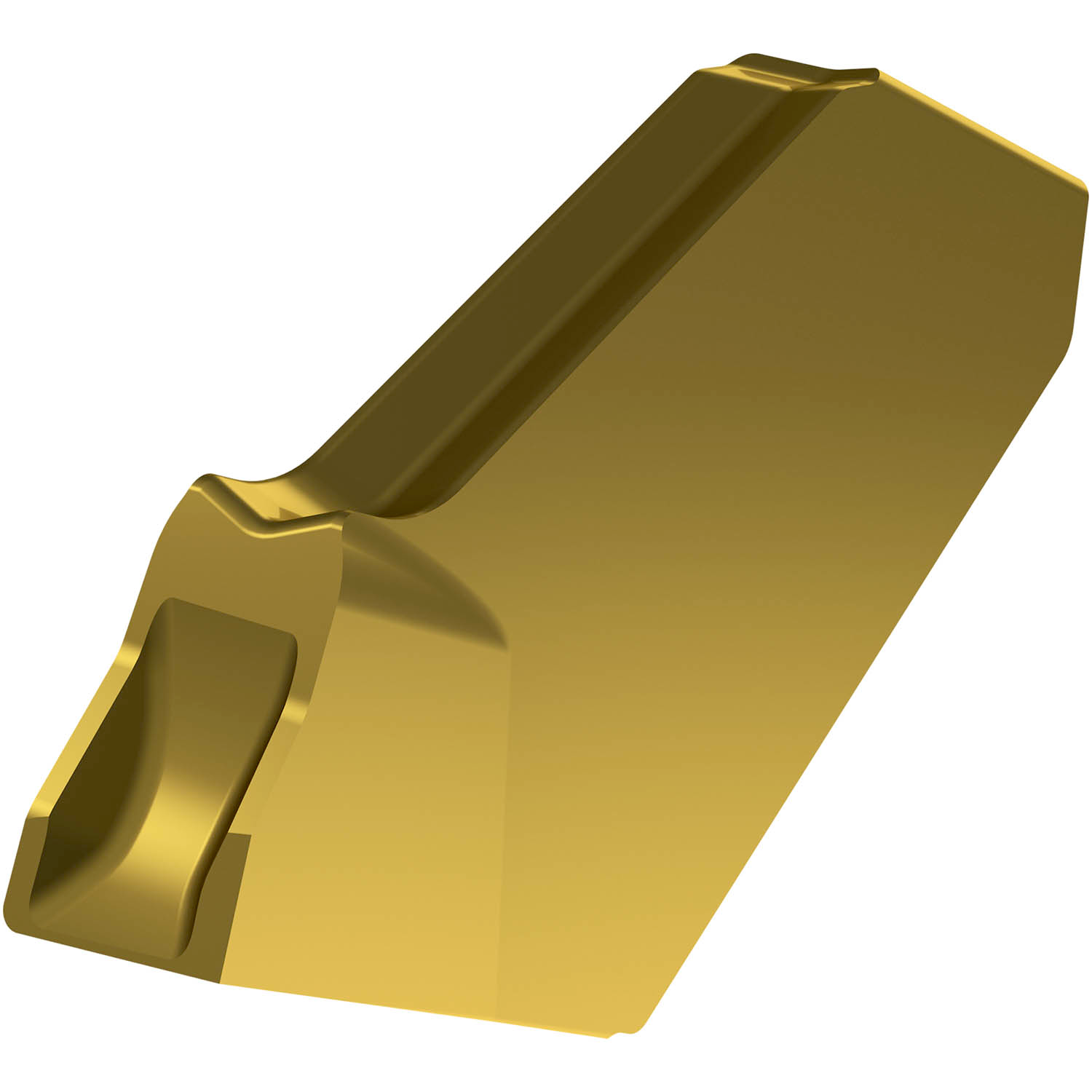

Single ended parting and grooving insert, with a 2 mm cutting width and 0.16 mm corner radii, 12° front angle to reduce pip and burr on the right hand side, an accuracy according to tolerance class-M and chip-breaker M2 with rounded cutting edges with facet, grade T8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and M20-M35 for machining of steel and stainless-steel in combination with DORMER PRAMET XL.F(NRL) 2.00 parting and grooving tools

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6754326
