Dormer-Pramet

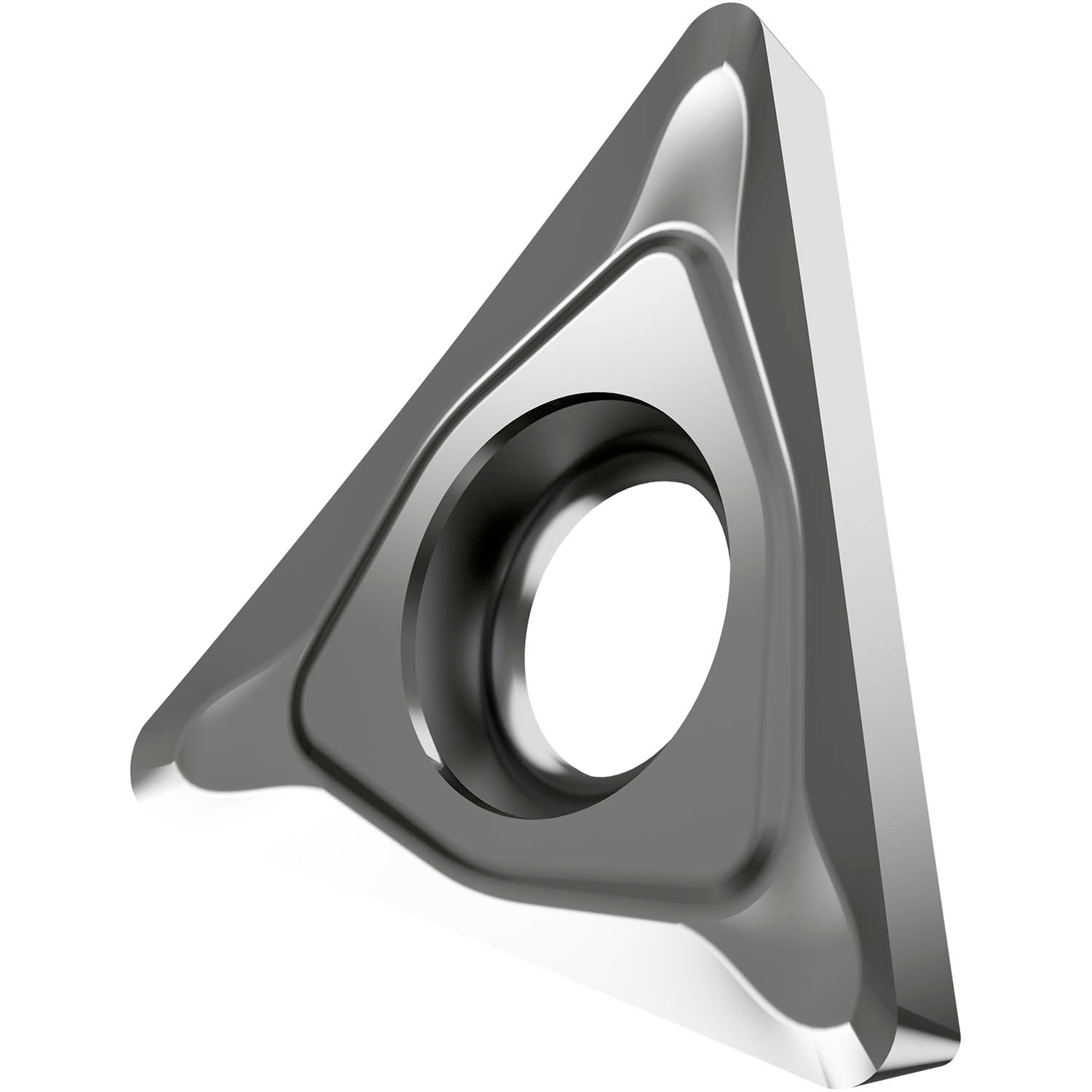

Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 5.56 mm, 2.38 mm thick, 0.4 mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker AL with sharp cutting edges, in grade HF7, an uncoated fine grained WC-Co carbide within ISO range N10 -N25, for fine to heavy machining of non-ferrous metals

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6751861
