Dormer-Pramet

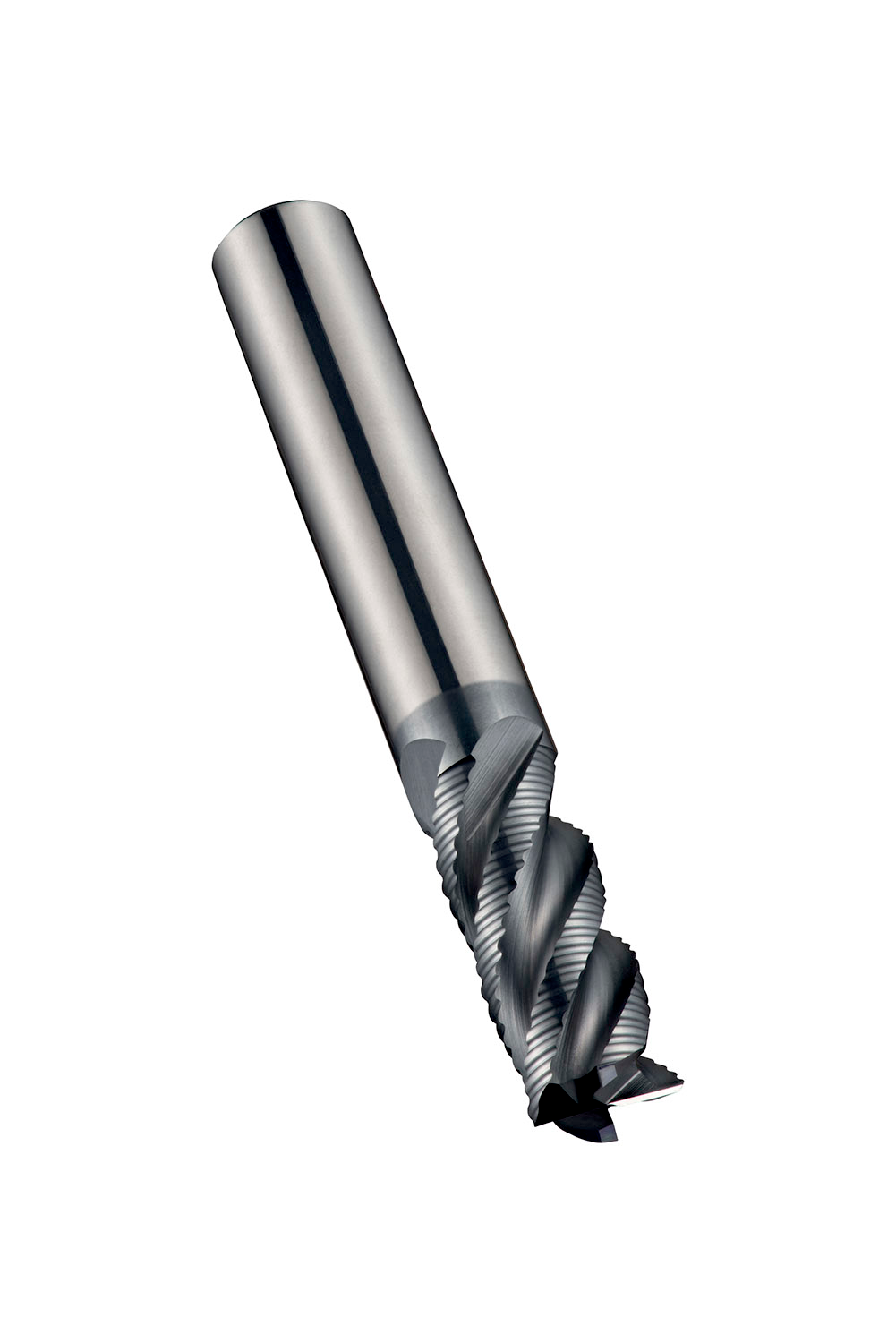

Short series roughing end mill with NR regular coarse pitch profile and 4 flutes, diameter 20 mm with 38 mm length of cut, 100 mm overall length and 0.4 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 20 mm plain shank, solid carbide with AlCrN coating, 40° helix with differential pitch and 10° rake angle for shoulder milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6706871
