Dormer-Pramet

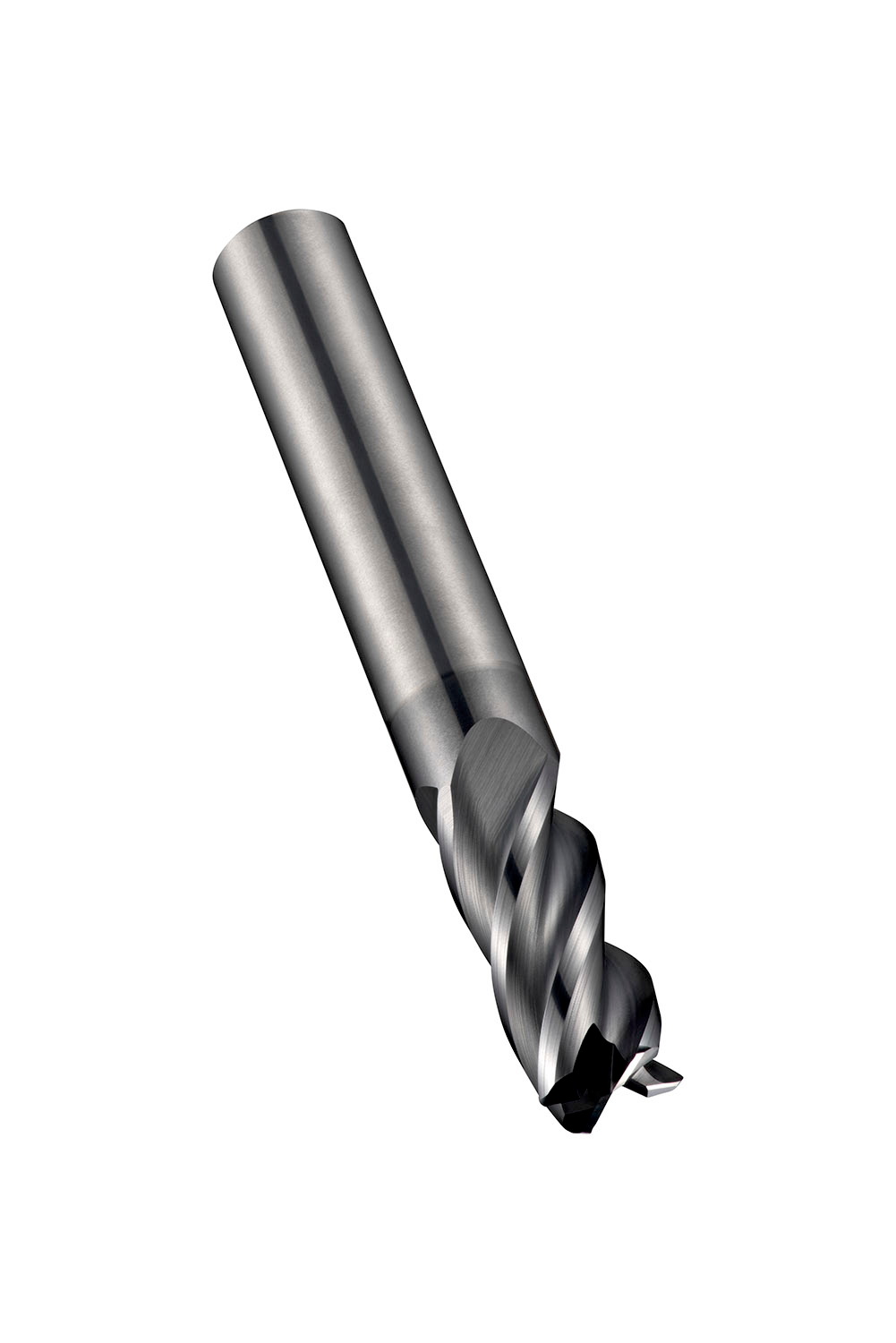

Short series corner radius end mill with 4 flutes, diameter 5 mm with 15 mm length of cut, 50 mm overall length and 0.3 mm corner radii, according to Dormer Pramet standard with a 5 mm plain shank, solid carbide with AlCrN coating, 40° helix with differential pitch and 10° rake angle for shoulder milling, plunging, progressive plunge milling, ramping and helical milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6706846
