Dormer-Pramet

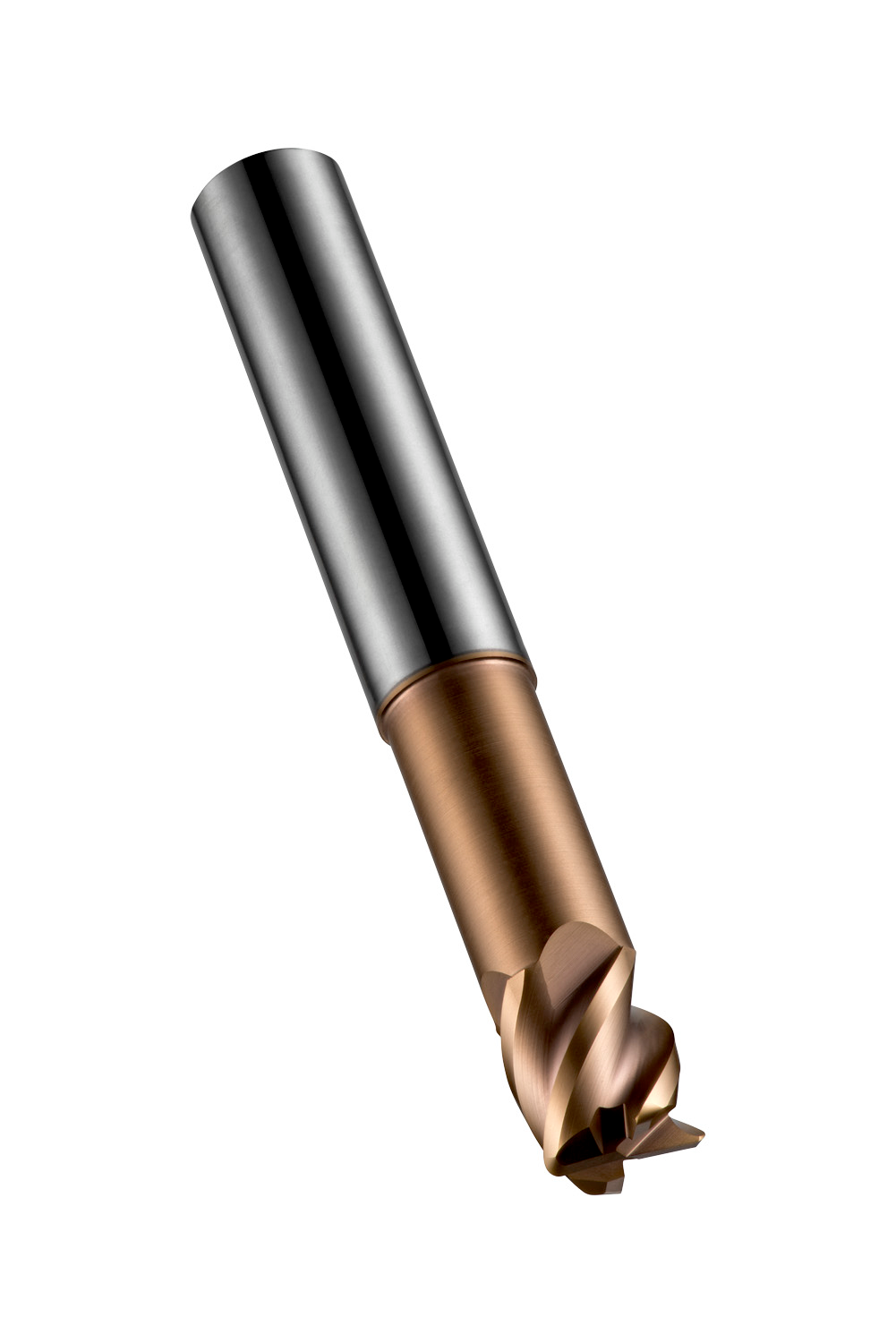

Extra short series corner radius end mill with 4 flutes, diameter 16 mm with 17 mm length of cut, 90 mm overall length, 43 mm reach with neck relief and 2 mm corner radii, according to Dormer Pramet standard with a 16 mm plain shank, solid carbide with TiSiN coating, 45° helix and -10° rake angle for shoulder milling, plunging, progressive plunge milling, ramping and helical milling in hardened materials

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6706684
