Dormer-Pramet

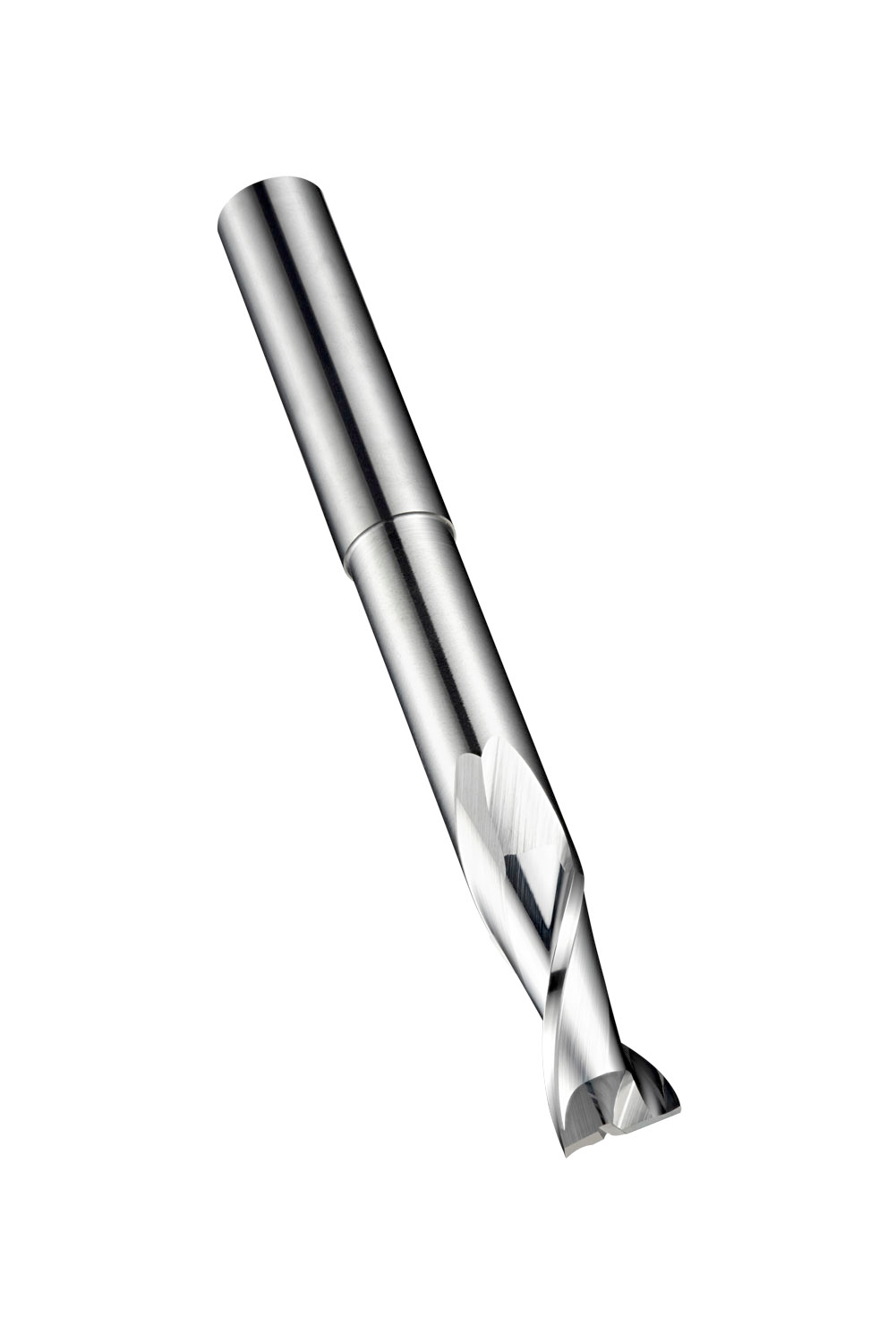

Short series end mill with 2 flutes, diameter 8 mm with 20 mm length of cut, 80 mm overall length, 40 mm reach with neck relief and 0.1 mm corner radii, according to Dormer Pramet standard with a 8 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling, ramping and helical milling in non-ferrous metals

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6706585
