Dormer-Pramet

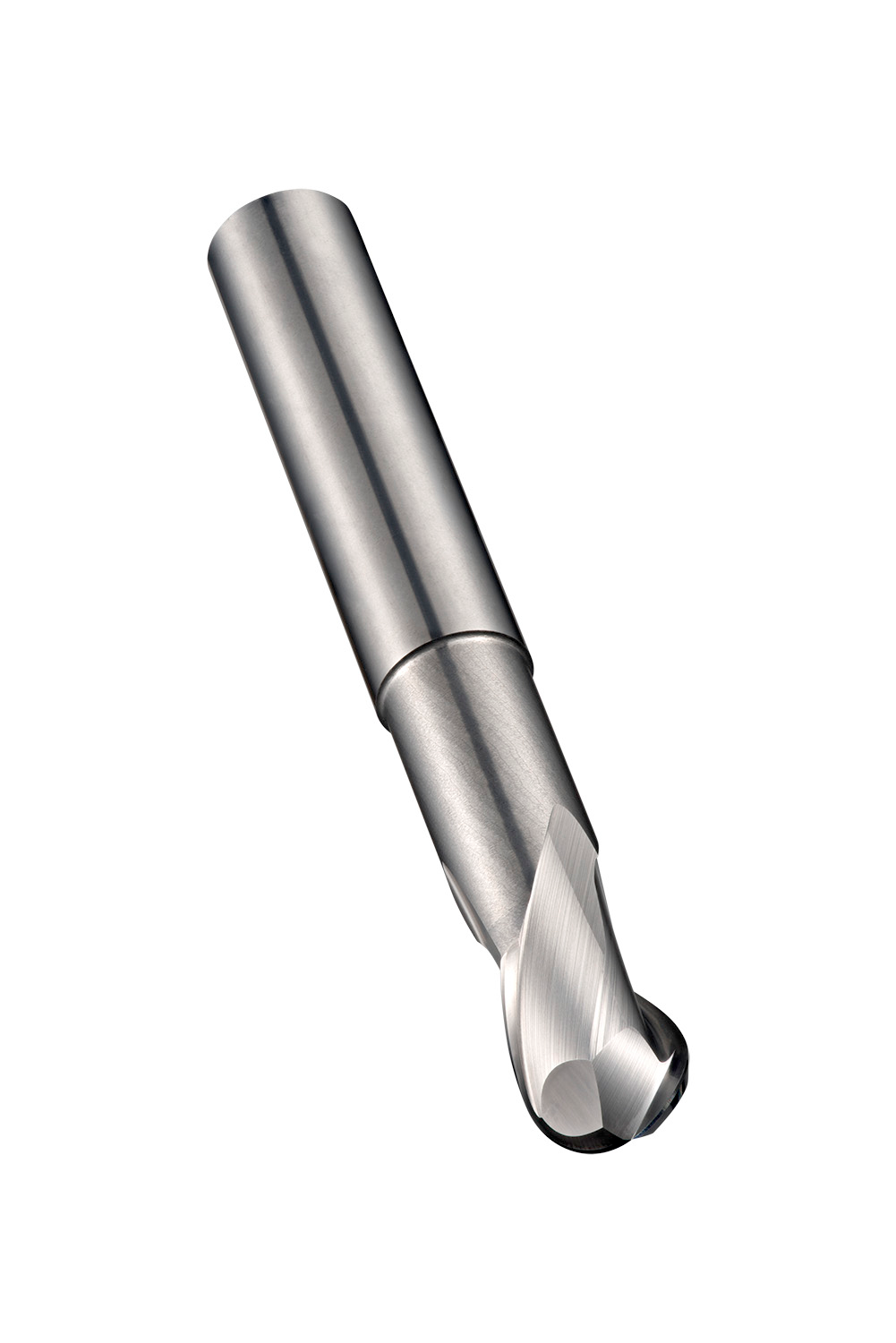

Extra short series ball-nose end mill with 2 flutes, diameter 20 mm with 22 mm length of cut, 100 mm overall length, 50 mm reach with neck relief and 10 mm full profile radius, according to Dormer Pramet standard with a 20 mm plain shank, solid carbide with polished finish, 30° helix and 15° rake angle for copy milling in non-ferrous metals

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6706538
