Dormer-Pramet

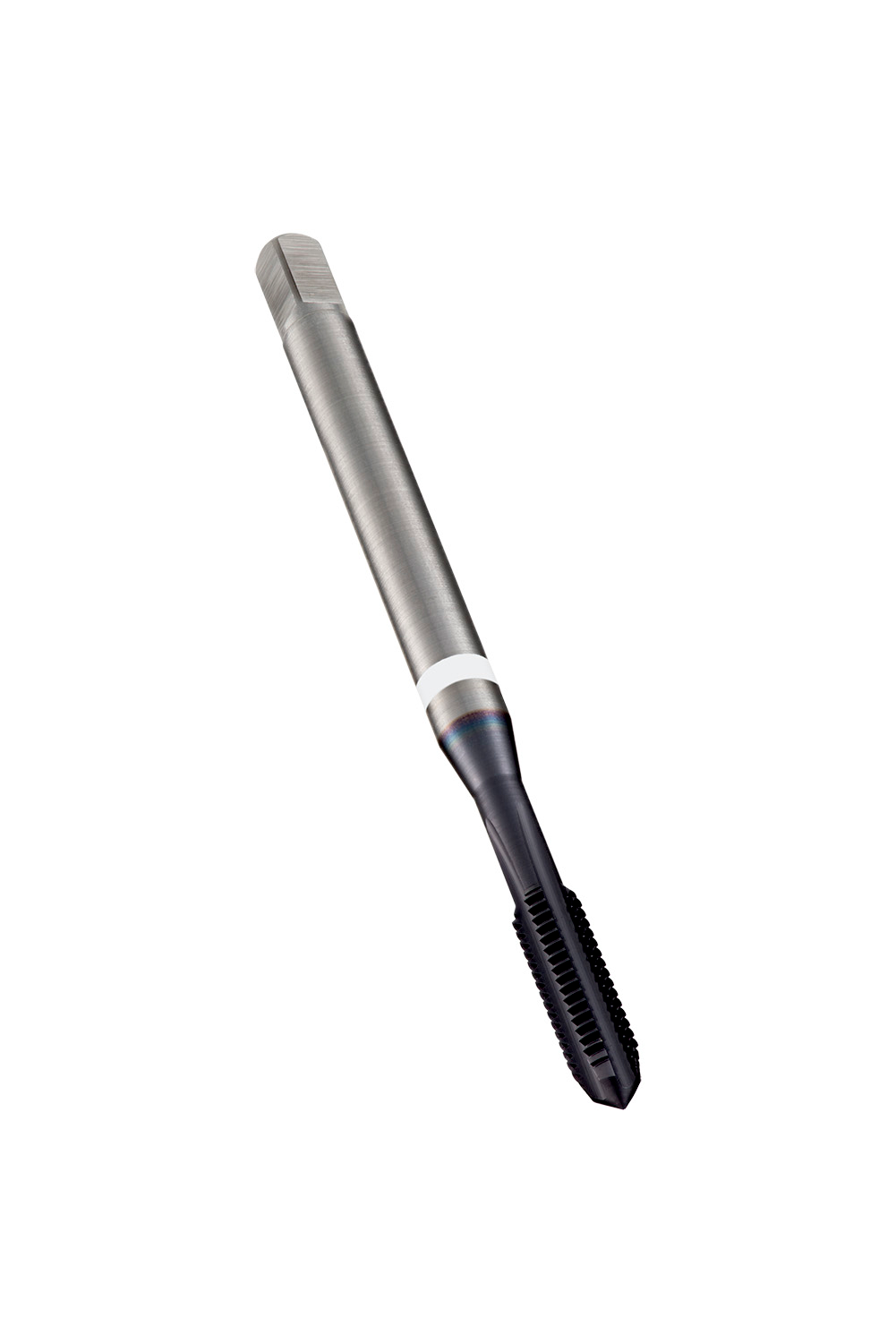

Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6HX class of fit, dimensions according to DIN 371 standard with 3.5 mm shank and 2.7 mm square drive, powder metallurgical HSS-E with TiAlN coating for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6554557
