Dormer-Pramet

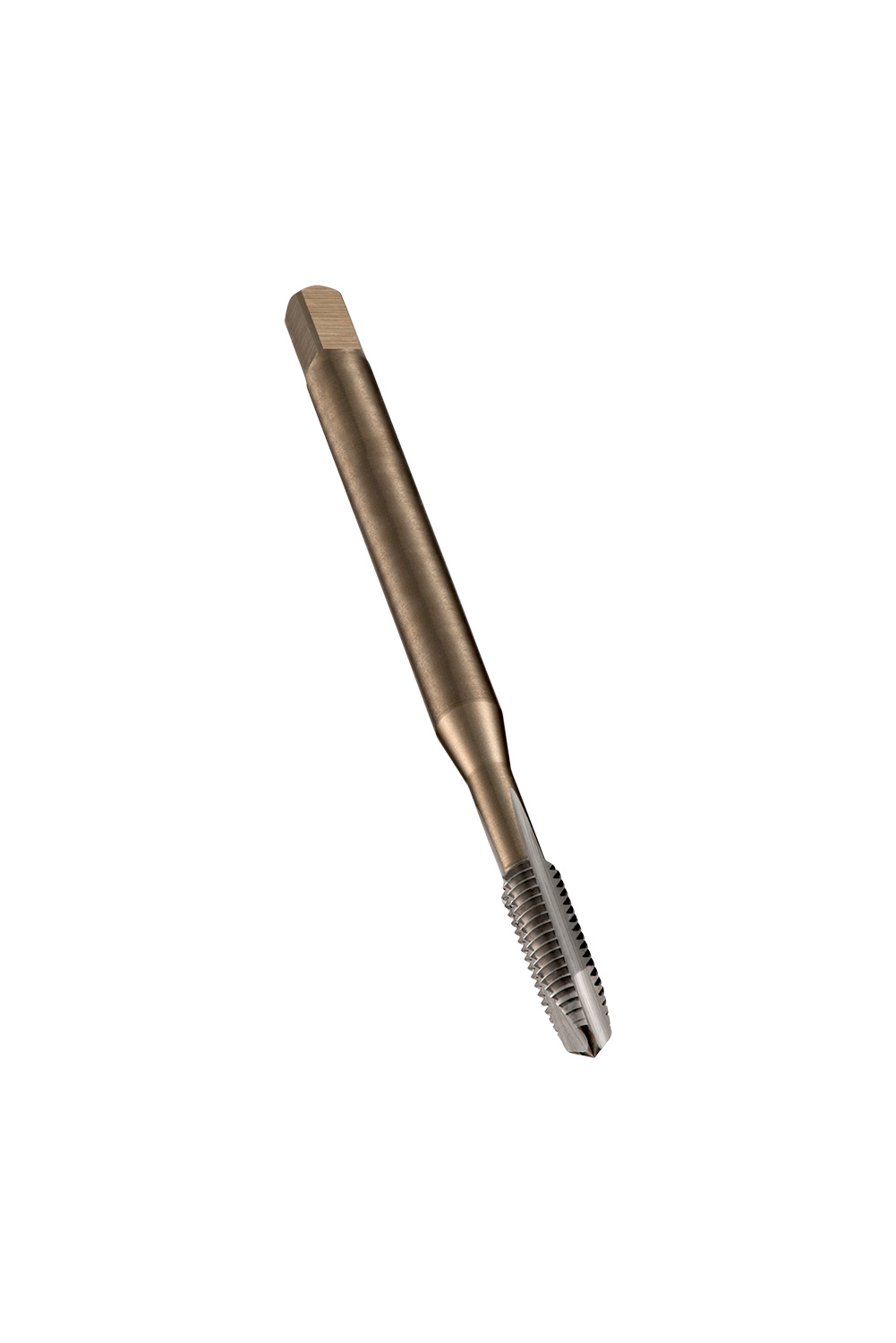

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6G class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6479123
