Dormer-Pramet

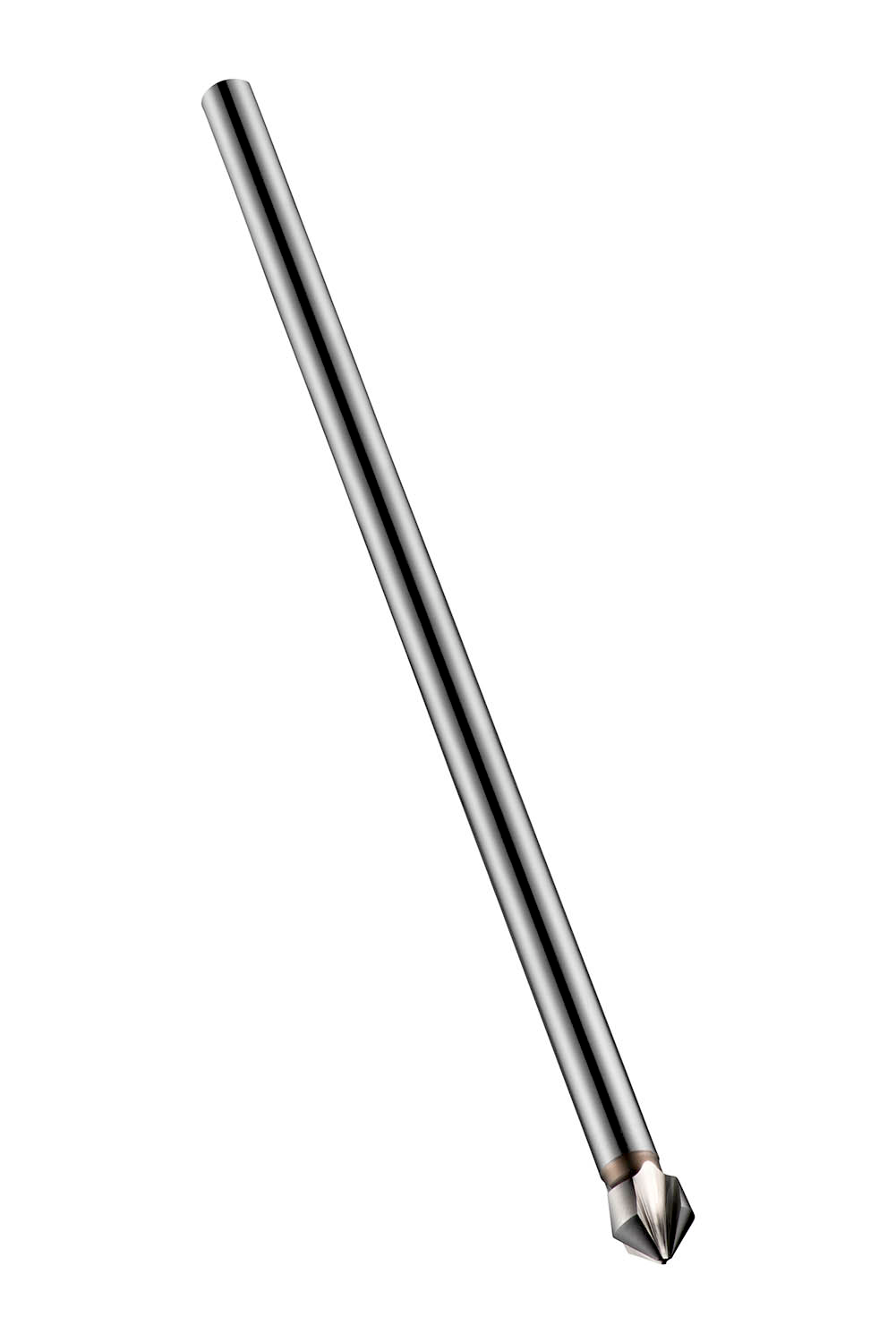

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 25.00 mm with an overall length of 168 mm and a head length of 15.7 mm and 10 mm straight extended shank, according to Dormer Pramet standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.20 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6381775
