Dormer-Pramet

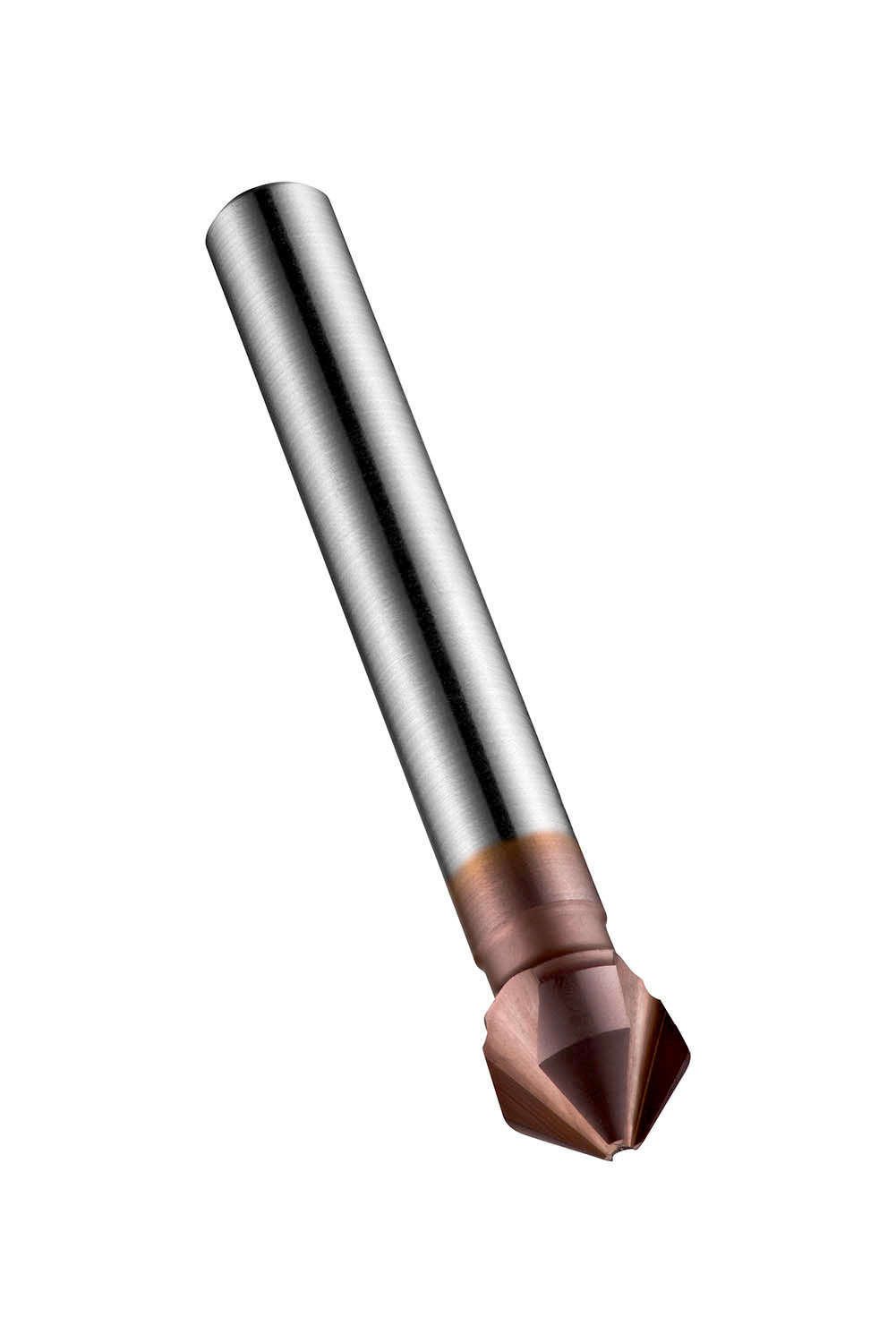

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 31.00 mm with an overall length of 71 mm and a head length of 24.4 mm and 12 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 4.20 mm, cobalt based HSS-E with standard AlTiCN coating for machining alloy and tool steel, ferritic, martensitic and austenitic stainless steel and grey, malleable, ductile and compacted graphite cast-iron

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6381767
