Dormer-Pramet
E384M10X1.0
Material ID: 6305865
Sale price
$59.44 CAD
Regular price
$107.00 CAD
E384M10X1.0

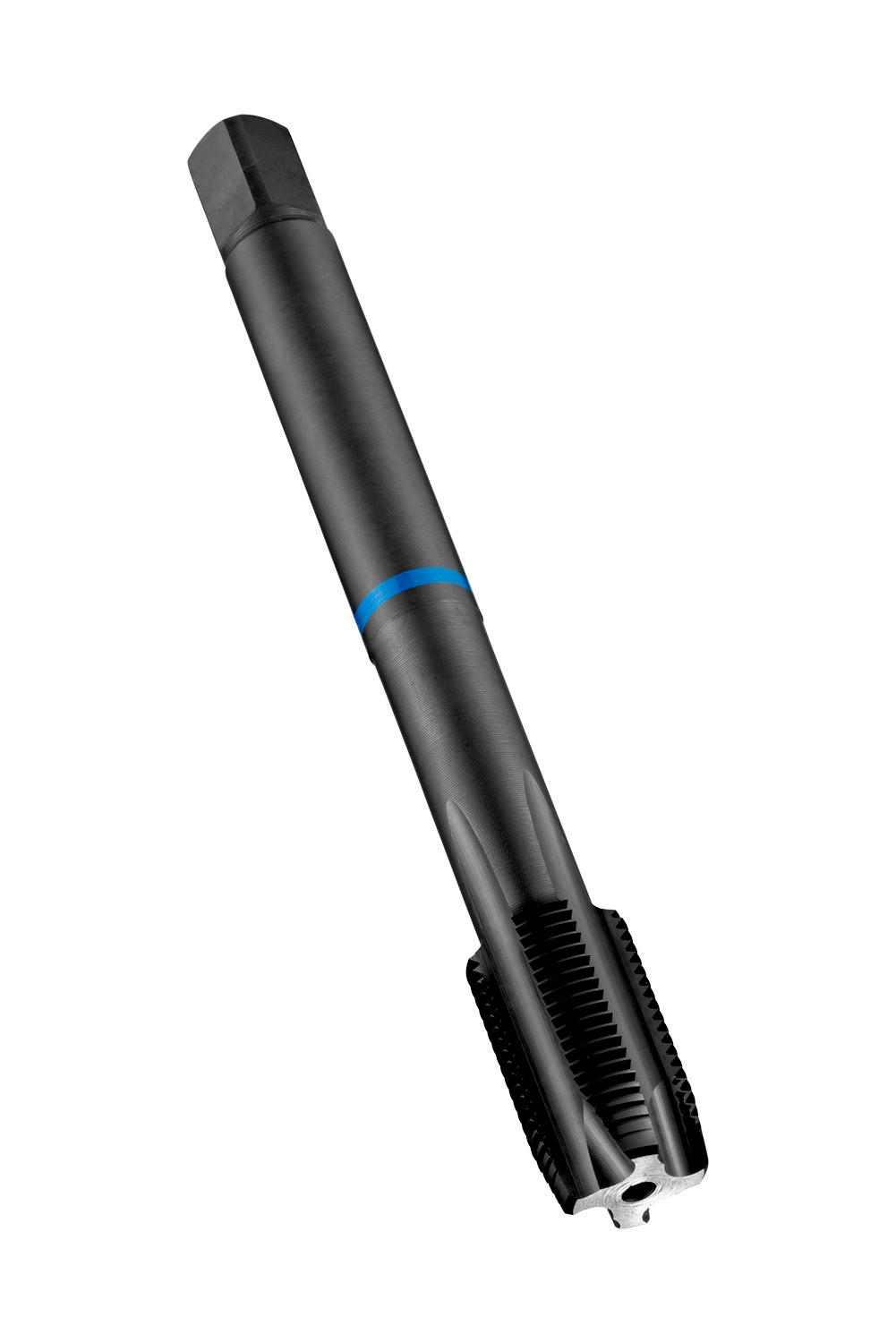

MF Machine Tap Spiral Point, Blue Shark
Material ID: 6305865
Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for ISO-Metric Fine thread M10 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 7.0 mm shank and 5.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in stainless steel
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
