Dormer-Pramet
E383M8X1.0
Material ID: 6305864
Sale price
$55.33 CAD
Regular price
$99.60 CAD
E383M8X1.0

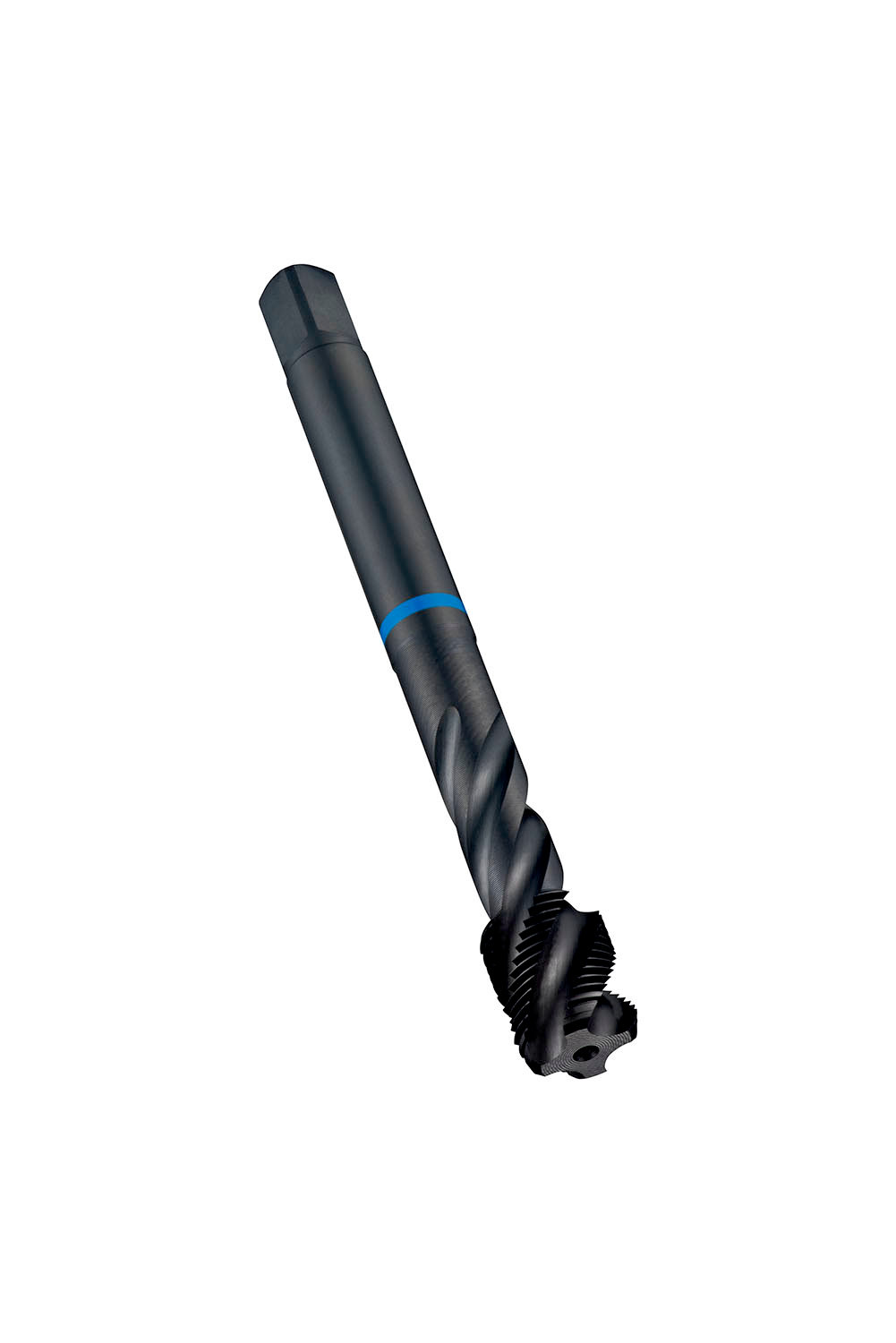

MF Machine Tap Spiral Flute 40°, Blue Shark
Material ID: 6305864
Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M8 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
