E3821/8

E3821/8

$62.22 CAD $112.00 CAD
Skip to product information
E3821/8
E3821/8

Dormer-Pramet

E3821/8

Material ID: 6305851

$62.22 CAD $112.00 CAD

E3821/8

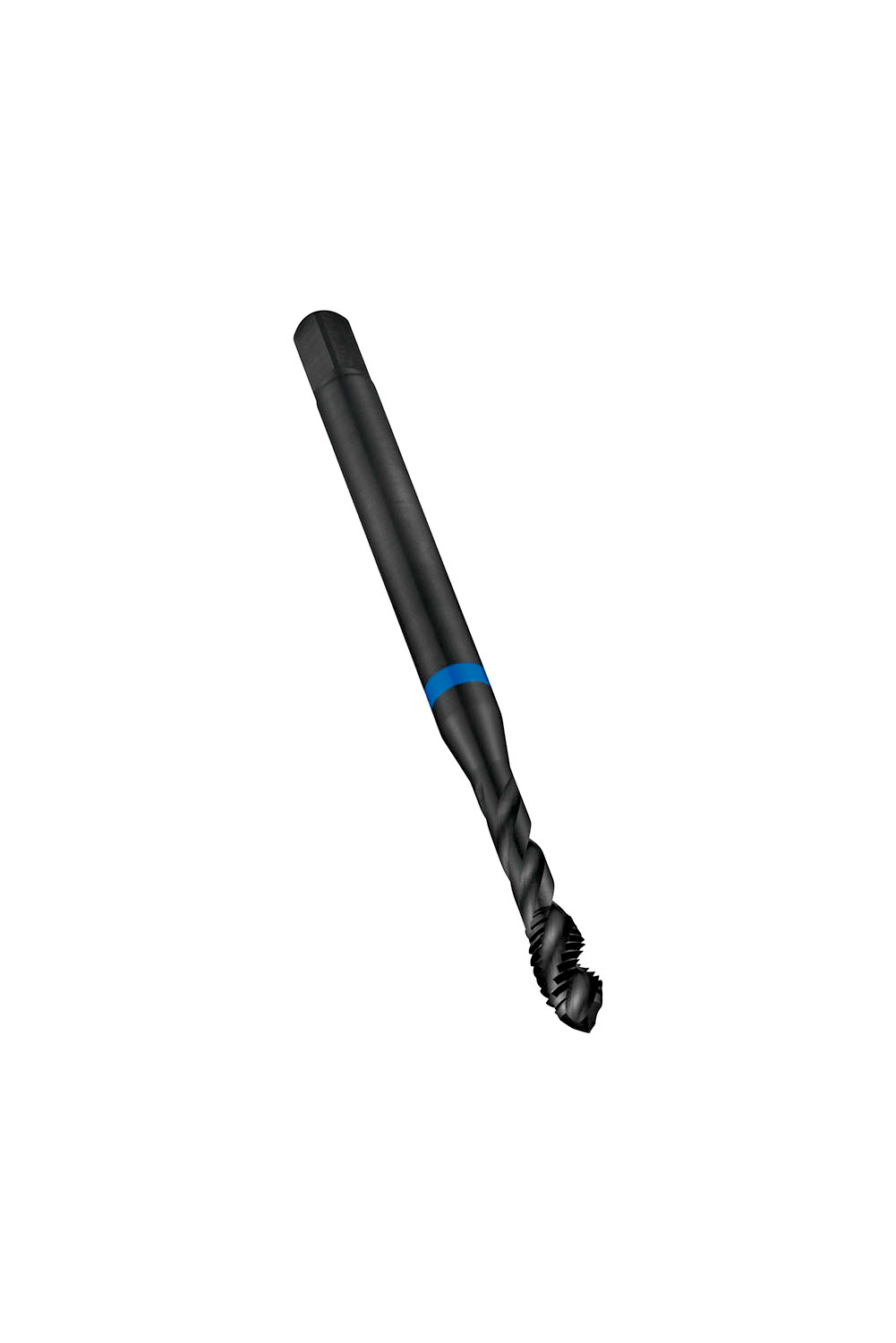

G(BSP) Machine Tap Spiral Flute 40°, Blue Shark

Material ID: 6305851


Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for British Standard Pipe thread G 1/8 inch with 28 TPI and Normal class of fit, dimensions according to DIN 5156 standard with 7.0 mm shank and 5.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6305851
