Dormer-Pramet
E238M14
Material ID: 6305779
Sale price
$98.89 CAD
Regular price
$178.00 CAD
E238M14

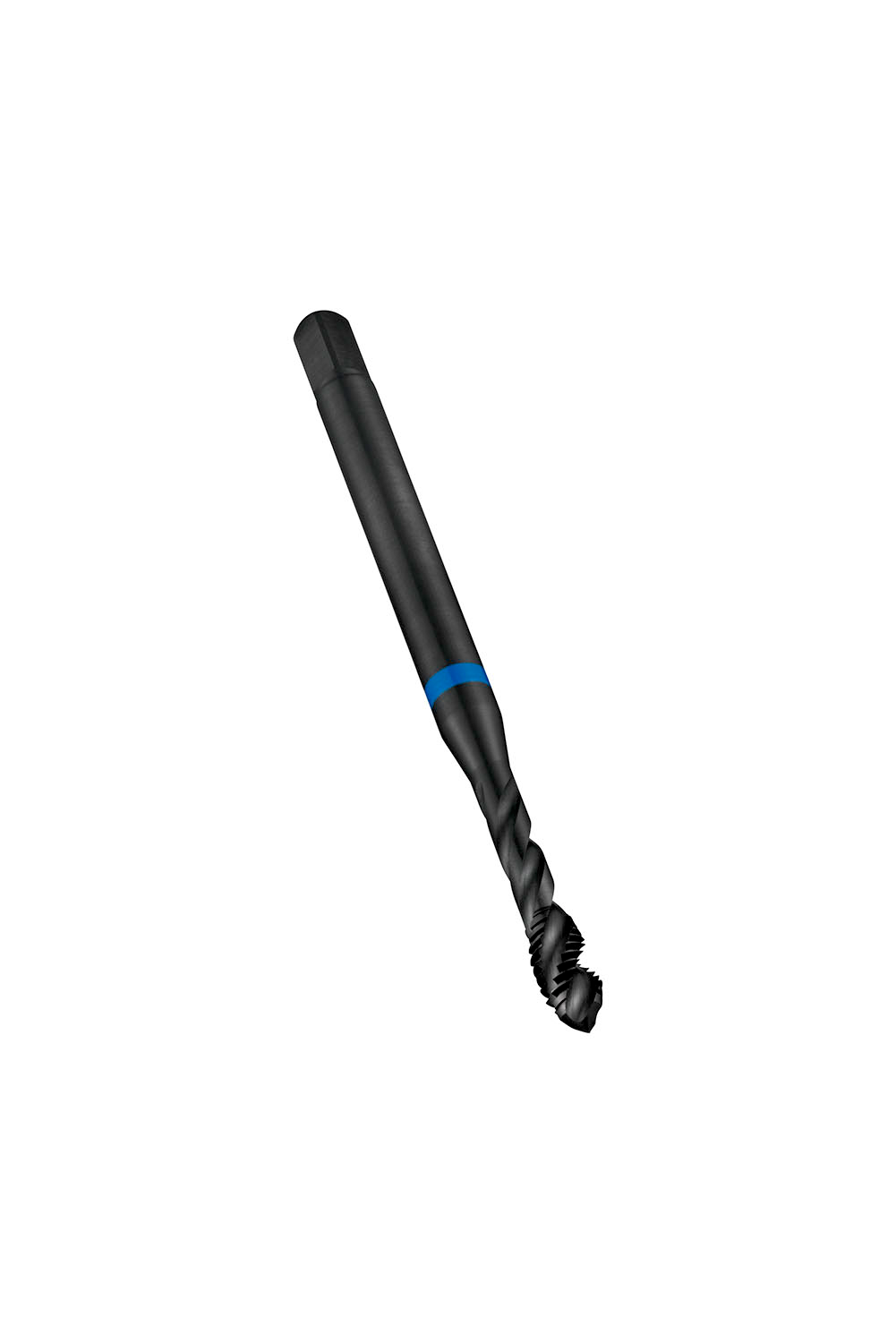

M Machine Tap Spiral Flute 40°, Back Tapered, Blue Shark
Material ID: 6305779
Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2.5xD blind hole threading in stainless steel
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
