Dormer-Pramet
E295M12
Material ID: 6305763
Sale price
$150.00 CAD
Regular price
$270.00 CAD
E295M12

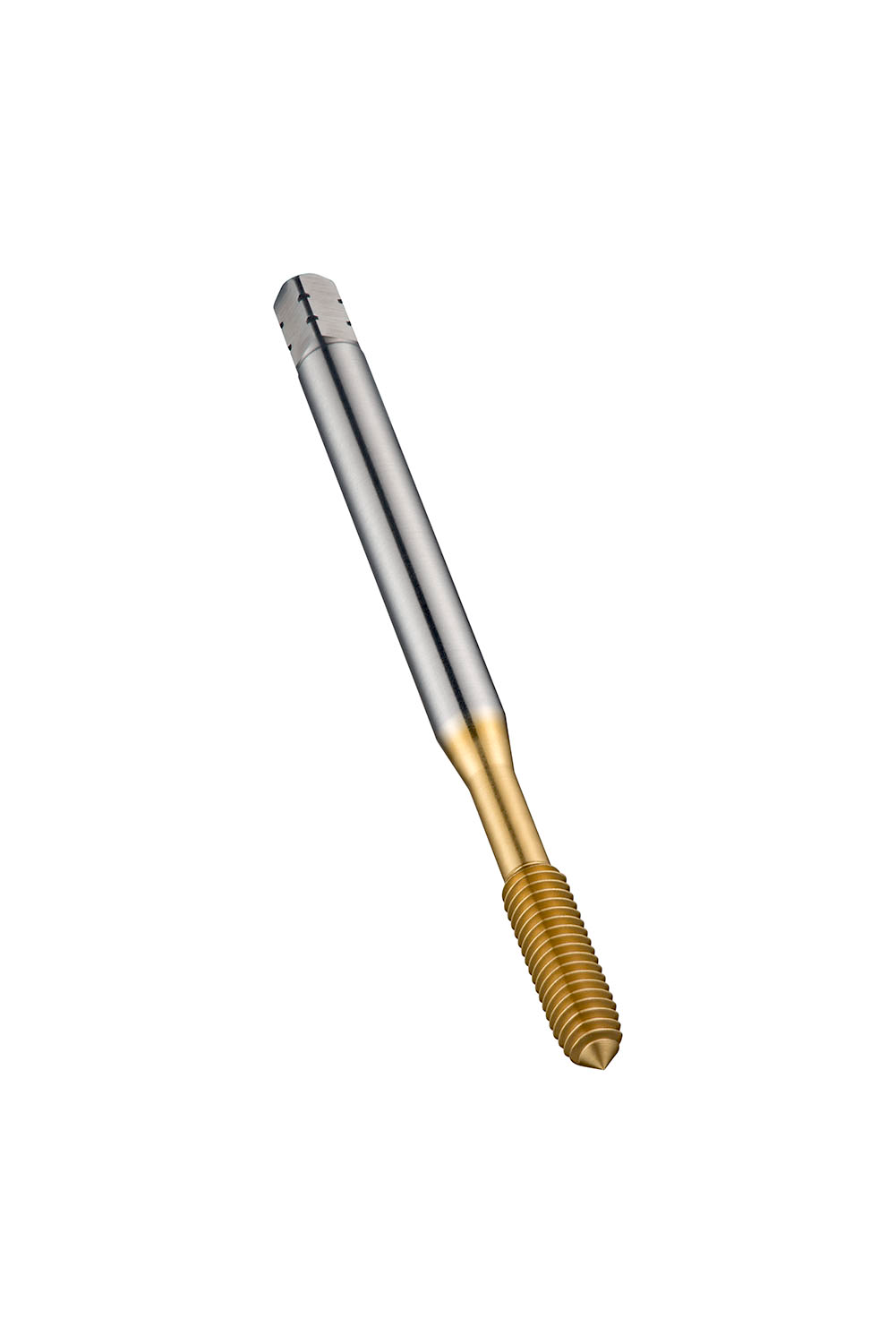

M Machine Forming Tap
Material ID: 6305763
Thread forming tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6GX class of fit, dimensions according to DIN 2174 standard with 9.0 mm shank and 7.0 mm square drive, cobalt based HSS-E with TiN coating for 3xD through or blind hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
