Dormer-Pramet

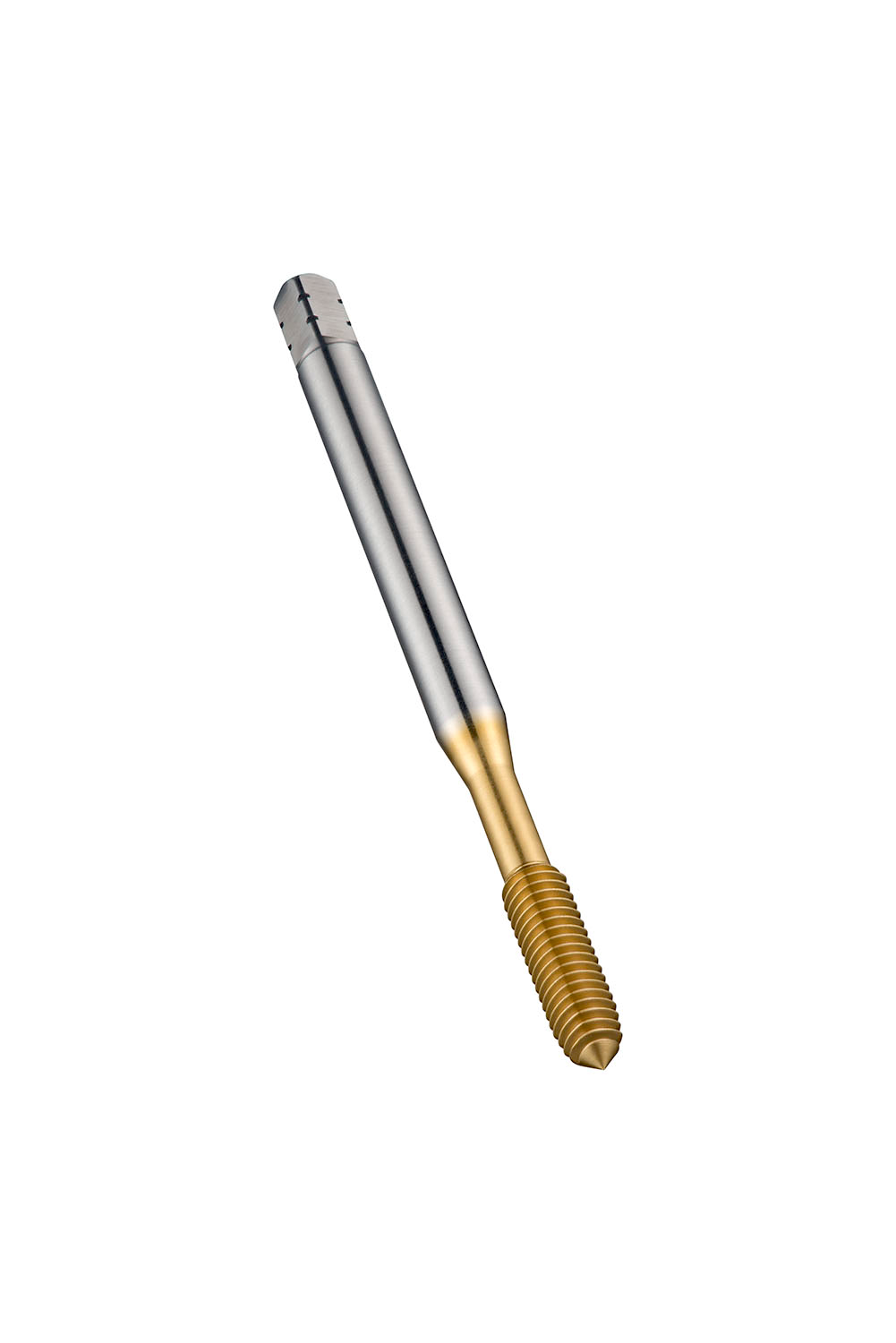

Thread forming tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6GX class of fit, dimensions according to DIN 2174 standard with 4.5 mm shank and 3.4 mm square drive, cobalt based HSS-E with TiN coating for 3xD through or blind hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6305758
