Dormer-Pramet

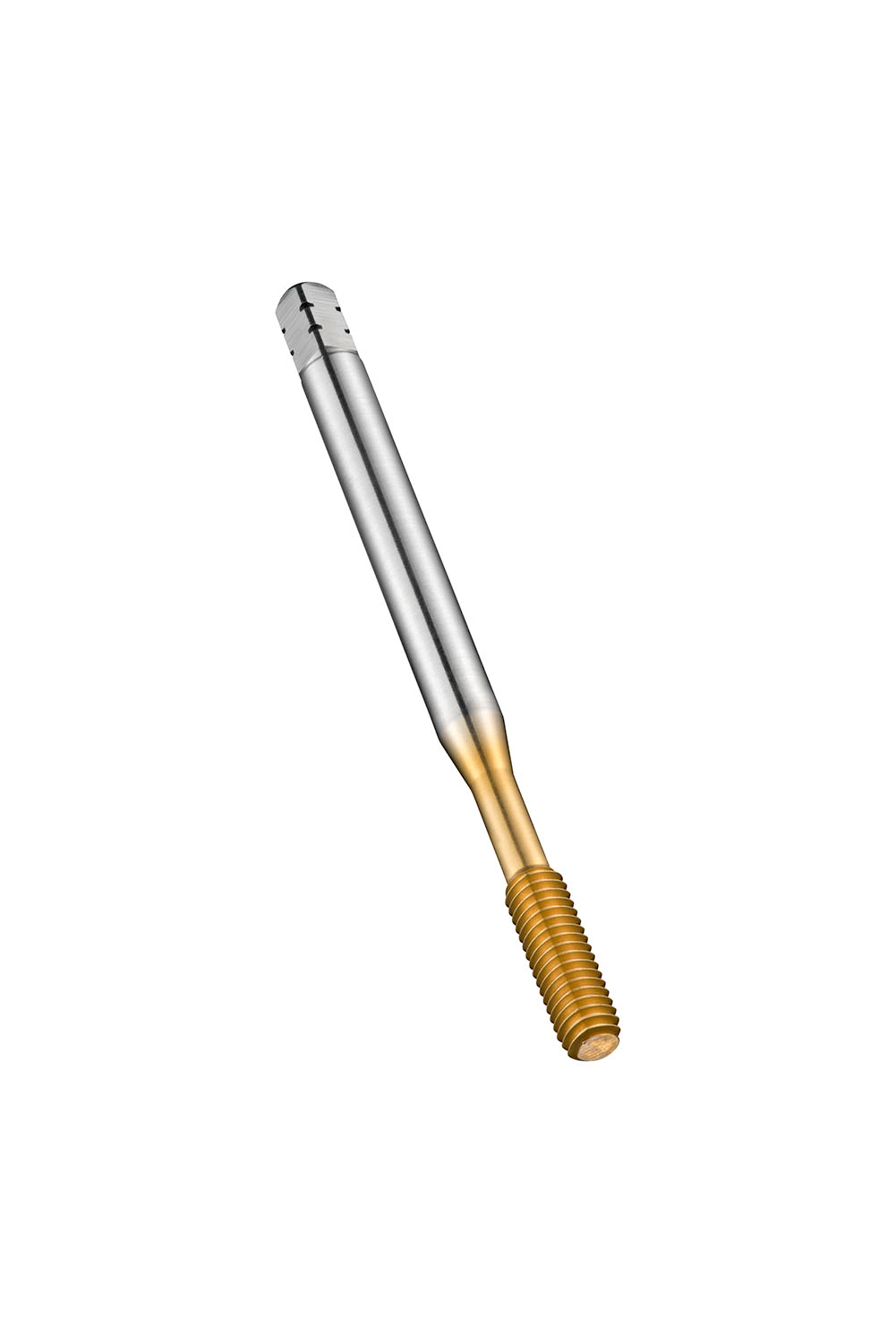

Thread forming tap with chamfer form E with a 1.5-2xP bottoming lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6HX class of fit, dimensions according to DIN 2174 standard with 6.0 mm shank and 4.9 mm square drive, cobalt based HSS-E with TiN coating for 3xD blind hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6305743
