Dormer-Pramet
EP10TINM18X1.5
Material ID: 6196726
Sale price
$175.00 CAD
Regular price
$315.00 CAD
EP10TINM18X1.5

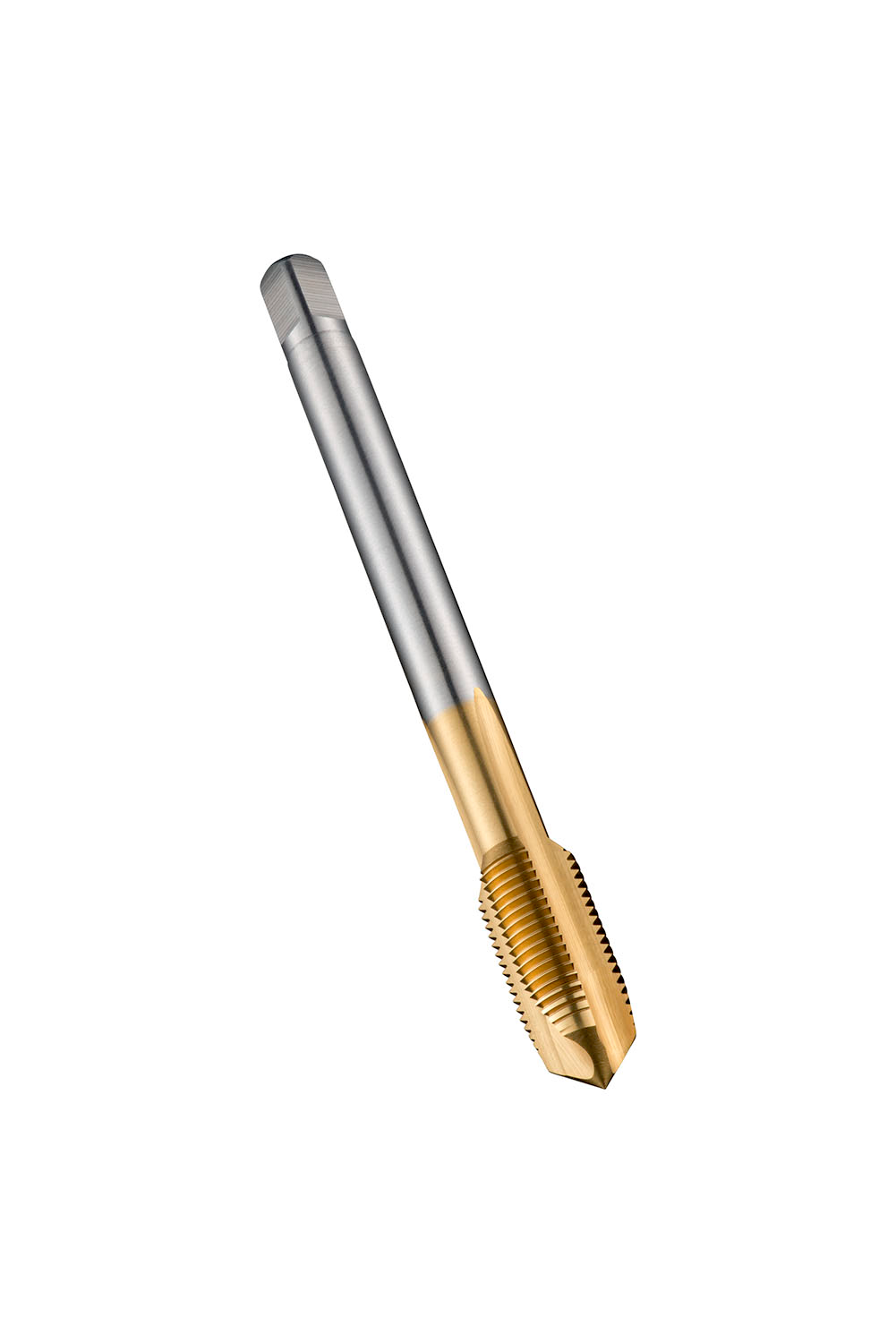

MF Machine Tap Spiral Point
Material ID: 6196726
Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric Fine thread M18 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 14.0 mm shank and 11.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
