Dormer-Pramet

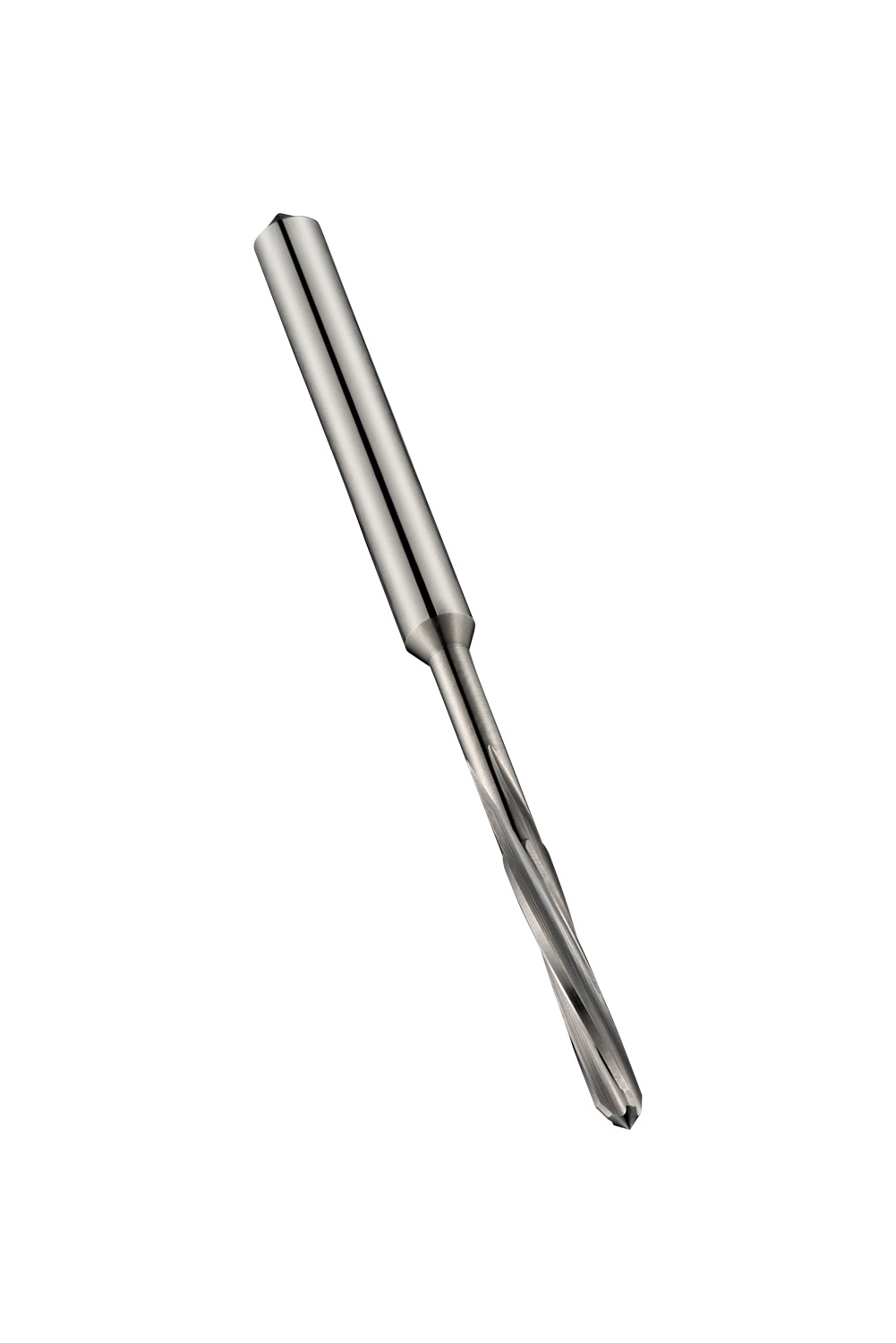

Centesimal reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 2.48 mm with an overall length of 60 mm, a flute length of 16 mm and 32 mm reach with neck relief, according to DIN 8093 standard with a diameter tolerance of 0/+0.004 mm to produce holes within diameter-tolerance 2.5N10, 2.5N11 or 2.5S7, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5987510
