Dormer-Pramet

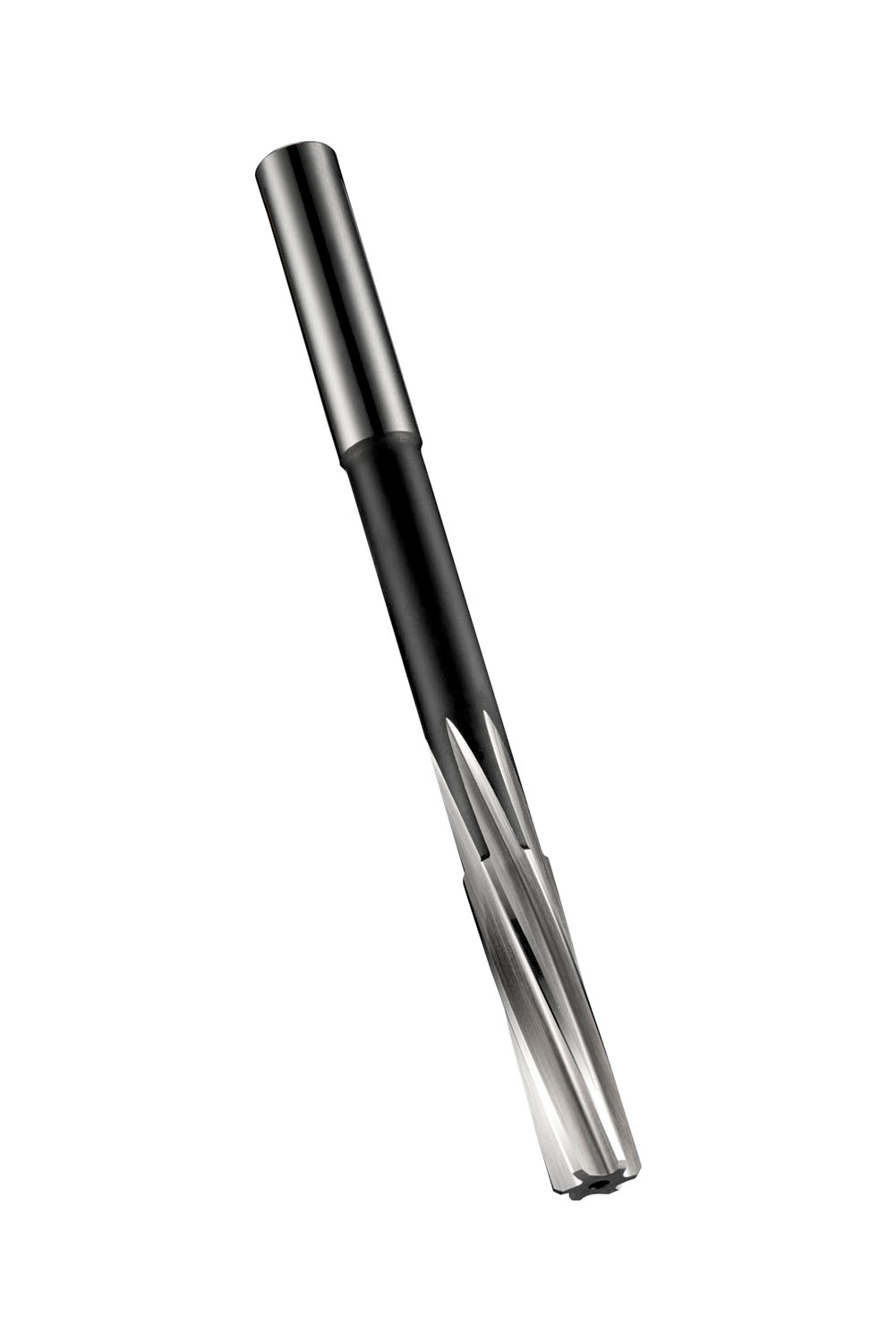

Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 5.03 mm with an overall length of 86 mm, a flute length of 23 mm and 52 mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.004 mm to produce holes within diameter-tolerance 5E8, 5F9 or 5H10, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5986918
