Dormer-Pramet

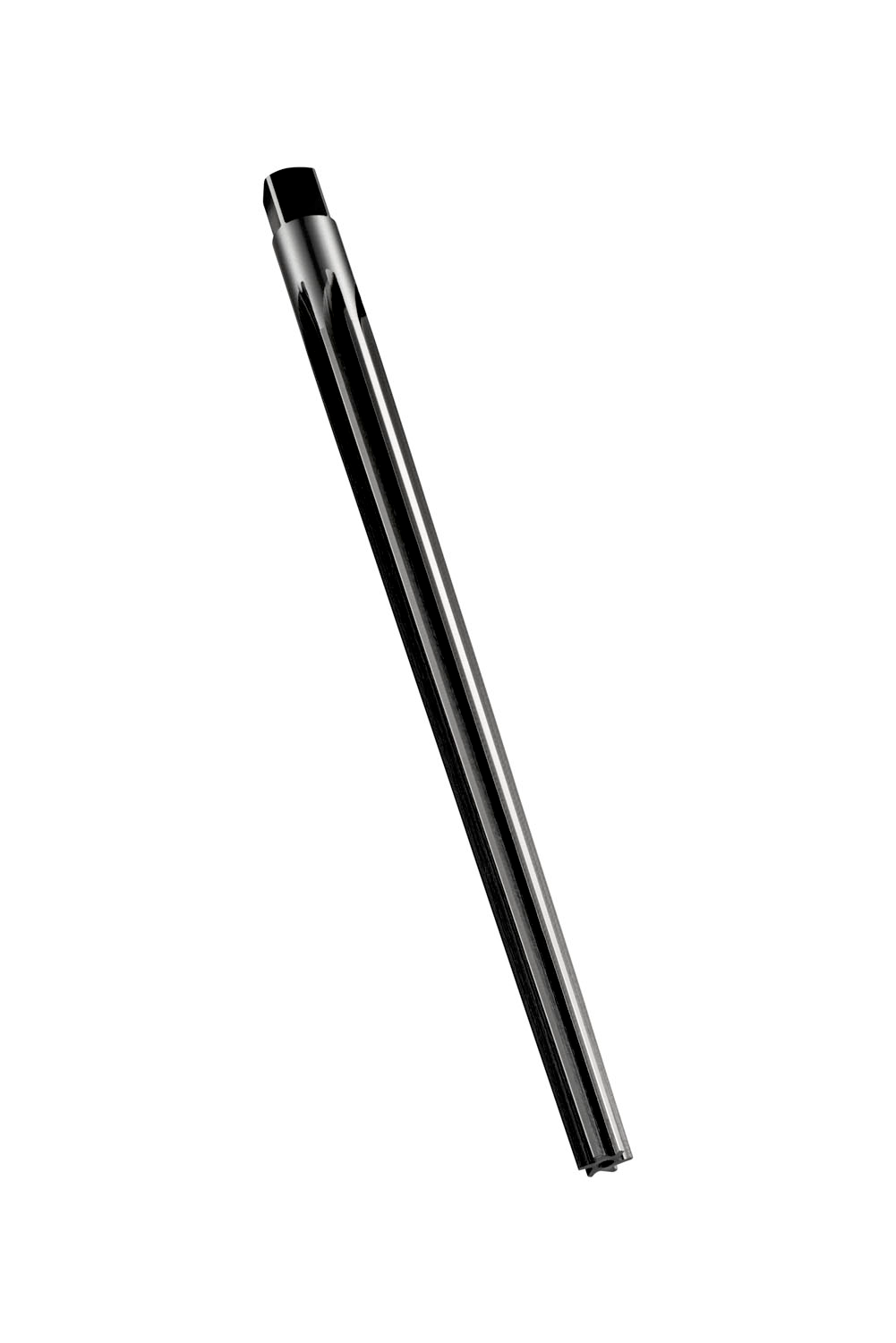

Taper pin hand reamer with straight flutes and a square drive, small end diameter 19.80 mm with an overall length of 310 mm, a flute length of 250 mm and 24.80 mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 20.00 mm taper pins will fit, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5986868
