Dormer-Pramet

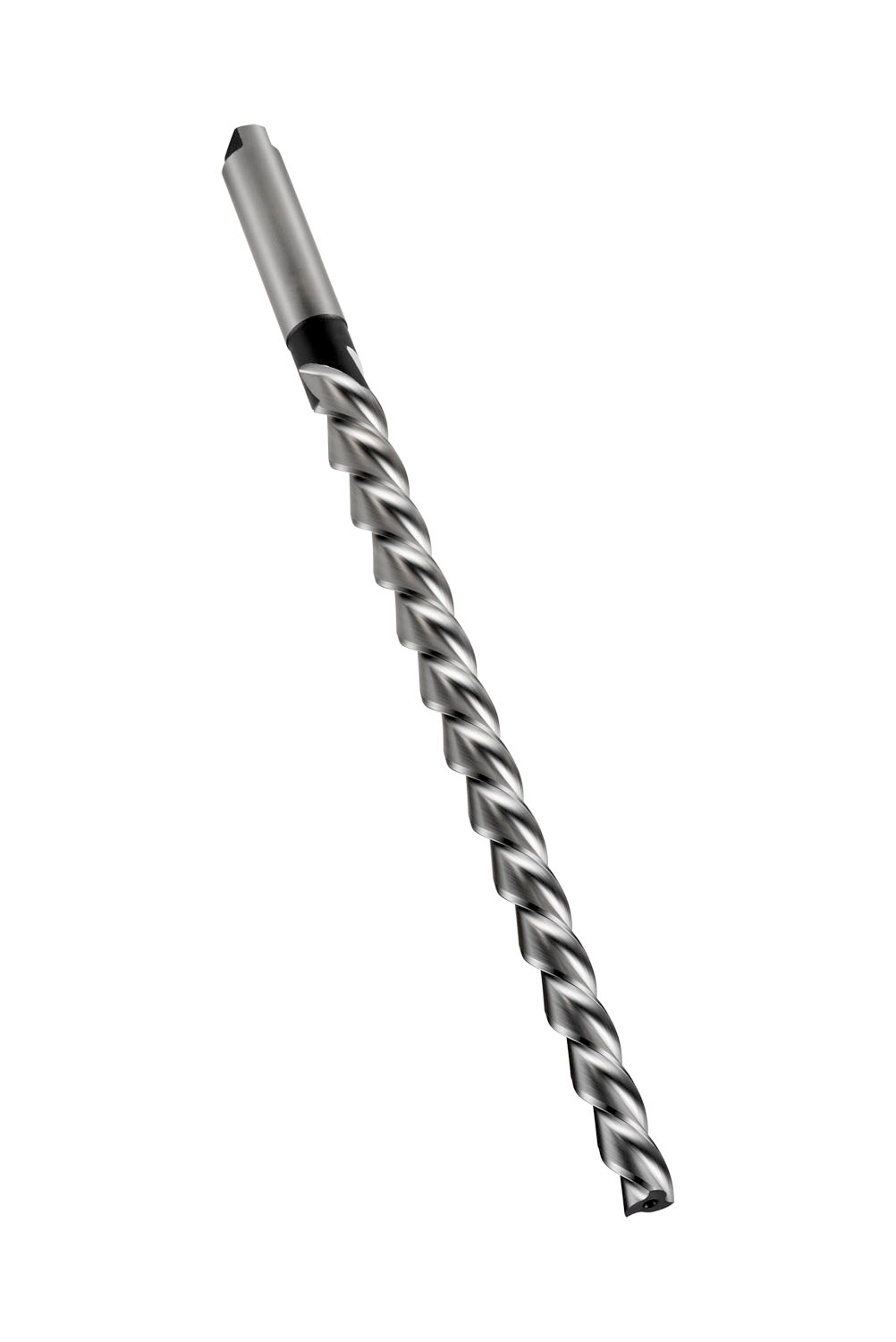

Taper pin machine reamer with left hand fast spiral flutes and a cylindrical shank with tang, small end diameter 2.90 mm with an overall length of 100 mm, a flute length of 58 mm and 4.06 mm large end diameter, according to DIN 2179 standard for reaming pin holes with a 1:50 taper into which 3.00 mm taper pins will fit, cobalt based HSS-E with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, cast aluminium

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5986762
