Dormer-Pramet

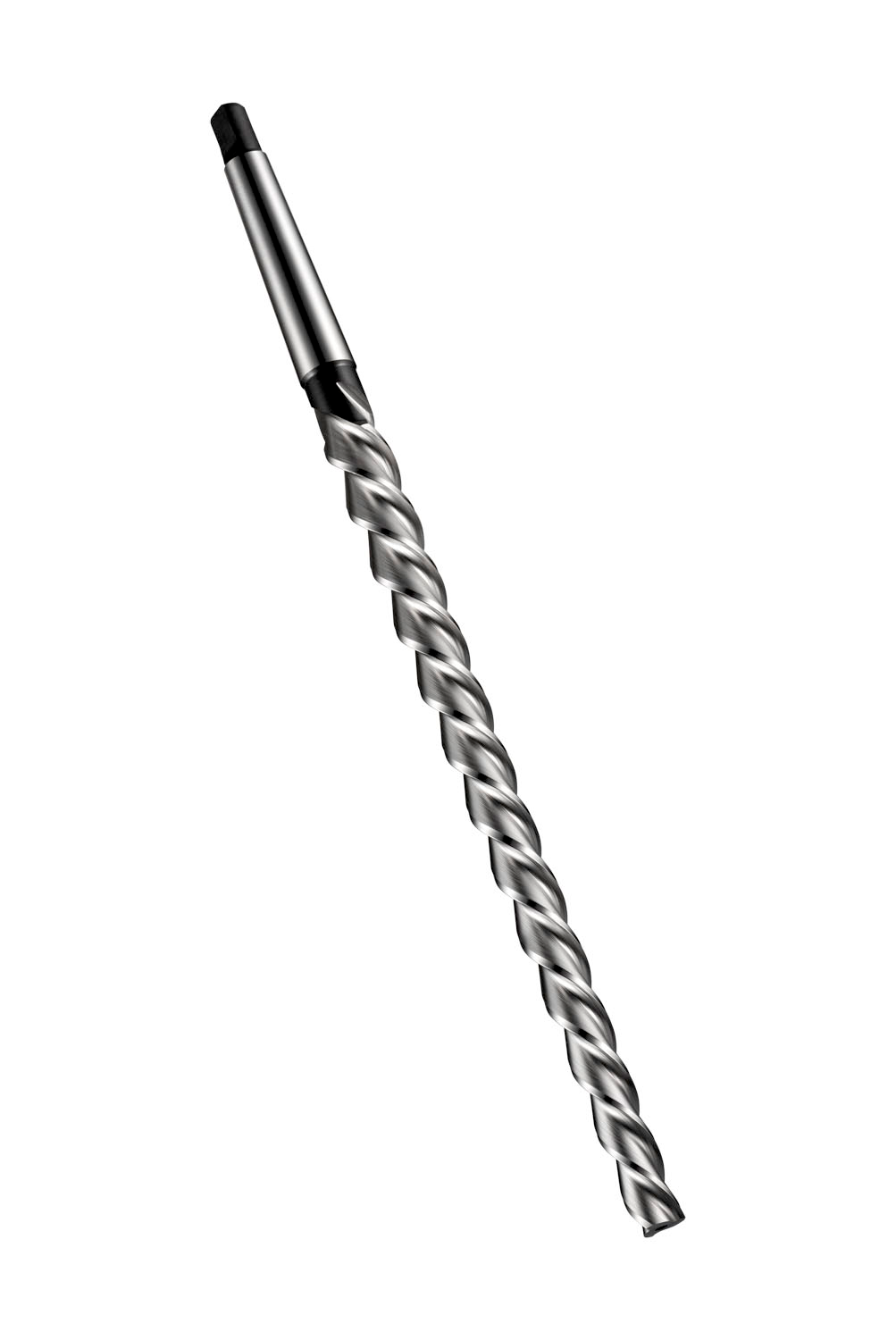

Taper pin machine reamer with left hand fast spiral flutes and a Morse taper shank, small end diameter 12.86 mm with an overall length of 295 mm, a flute length of 194 mm and 16.74 mm large end diameter, according to DIN 2180 standard for reaming pin holes with a 1:50 taper into which 13.00 mm taper pins will fit, cobalt based HSS-E with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5986694
