Dormer-Pramet

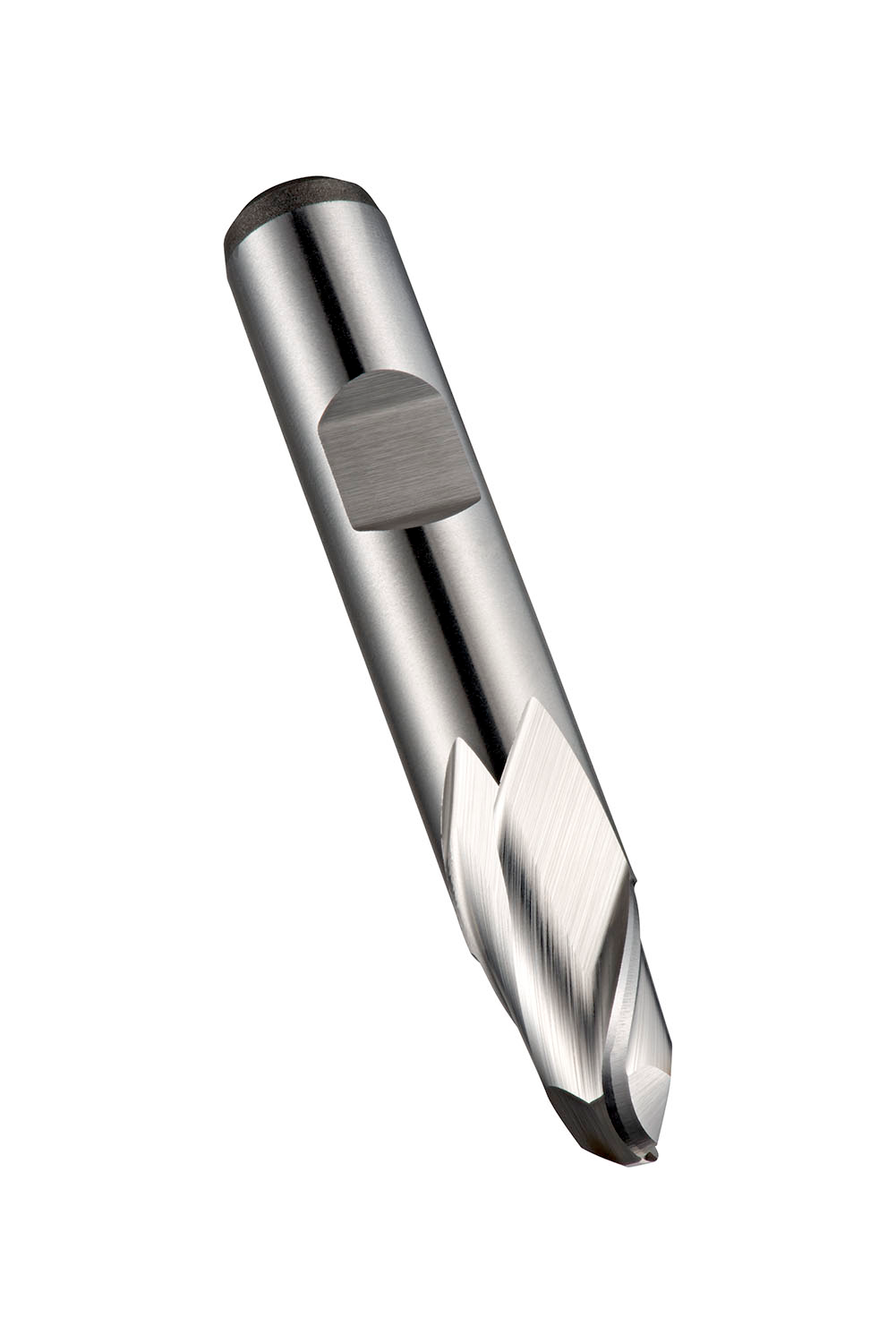

Extra short series ball-nose end mill with 2 flutes, diameter 15 mm with 16 mm length of cut, 73 mm overall length, 27.5 mm reach with neck relief and 7.5 mm full profile radius, according to DIN 327 D standard with a 12 mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for copy milling in free machining steel and copper or copper alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5985018
