Dormer-Pramet

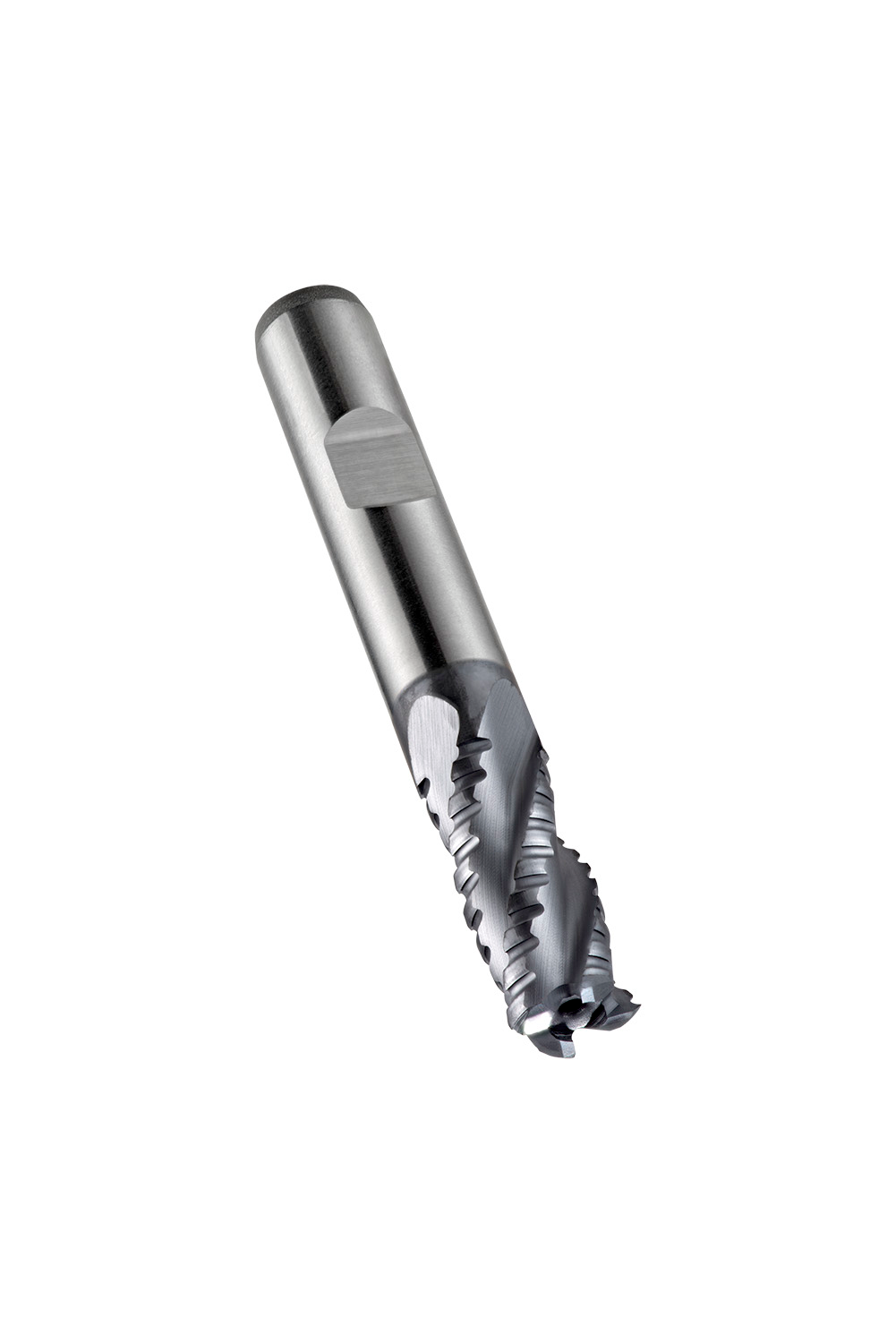

Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 10 mm with 22 mm length of cut and 72 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5984409
