Dormer-Pramet

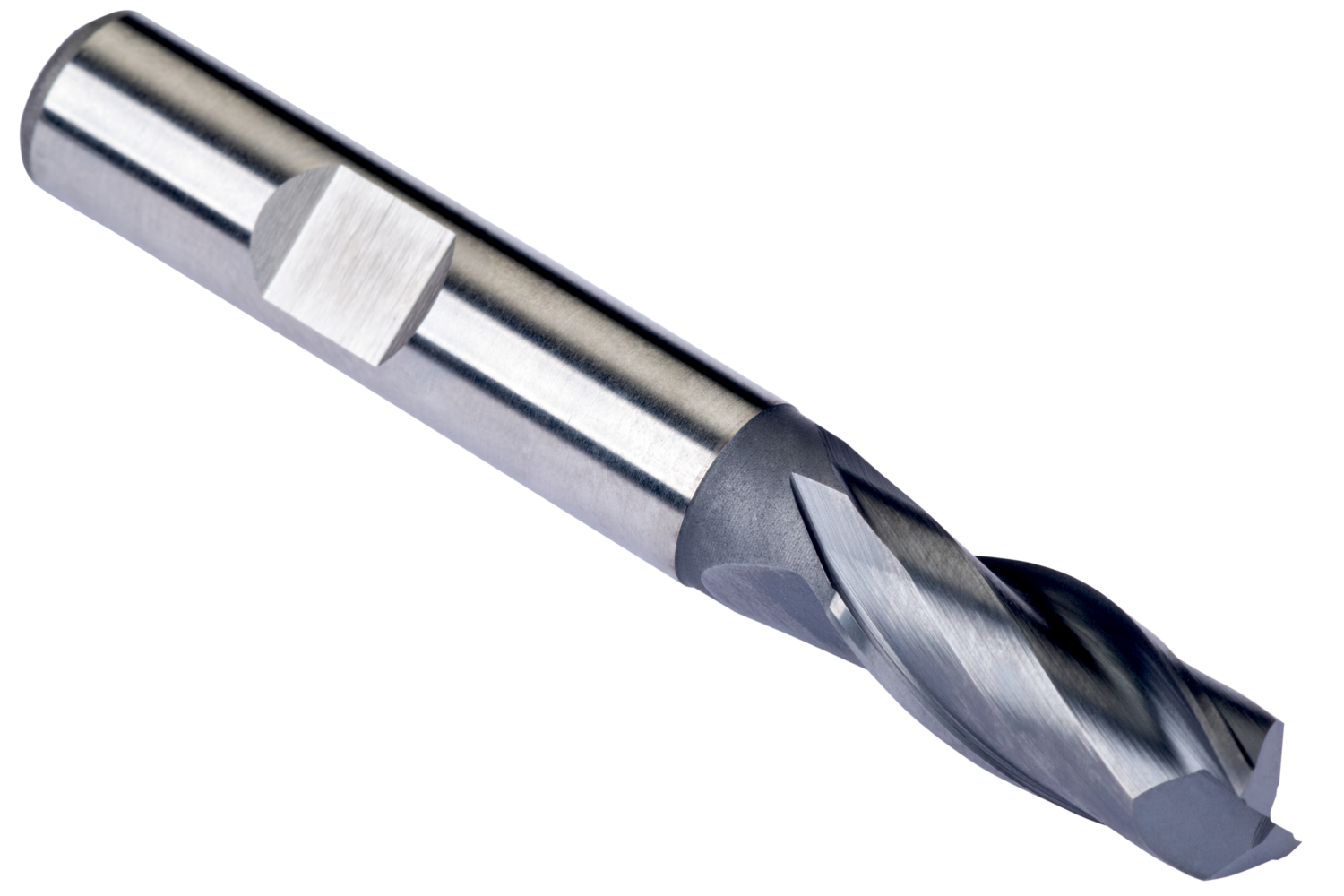

Short series slot drill with 2 flutes, diameter 16 mm with 32 mm length of cut, 92 mm overall length and 43.5 mm reach with neck relief, according to DIN 844 K standard with a 16 mm Weldon shank, powder metallurgical HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron, copper or copper alloys and titanium or titanium alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5984148
