Dormer-Pramet

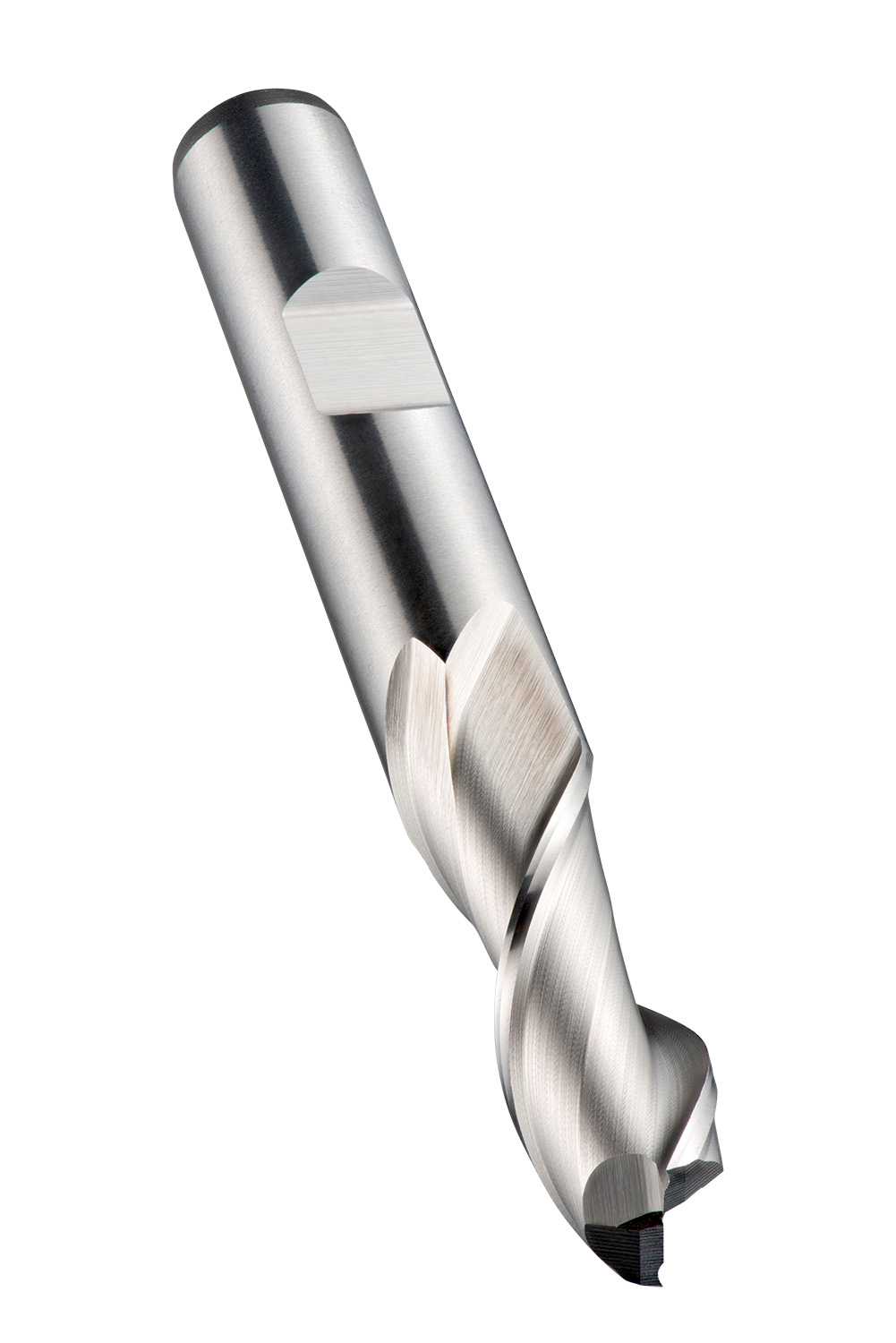

Short series slot drill with 2 flutes, diameter 14 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, cobalt based HSS-E with bright finish, 40° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5984107
