Dormer-Pramet

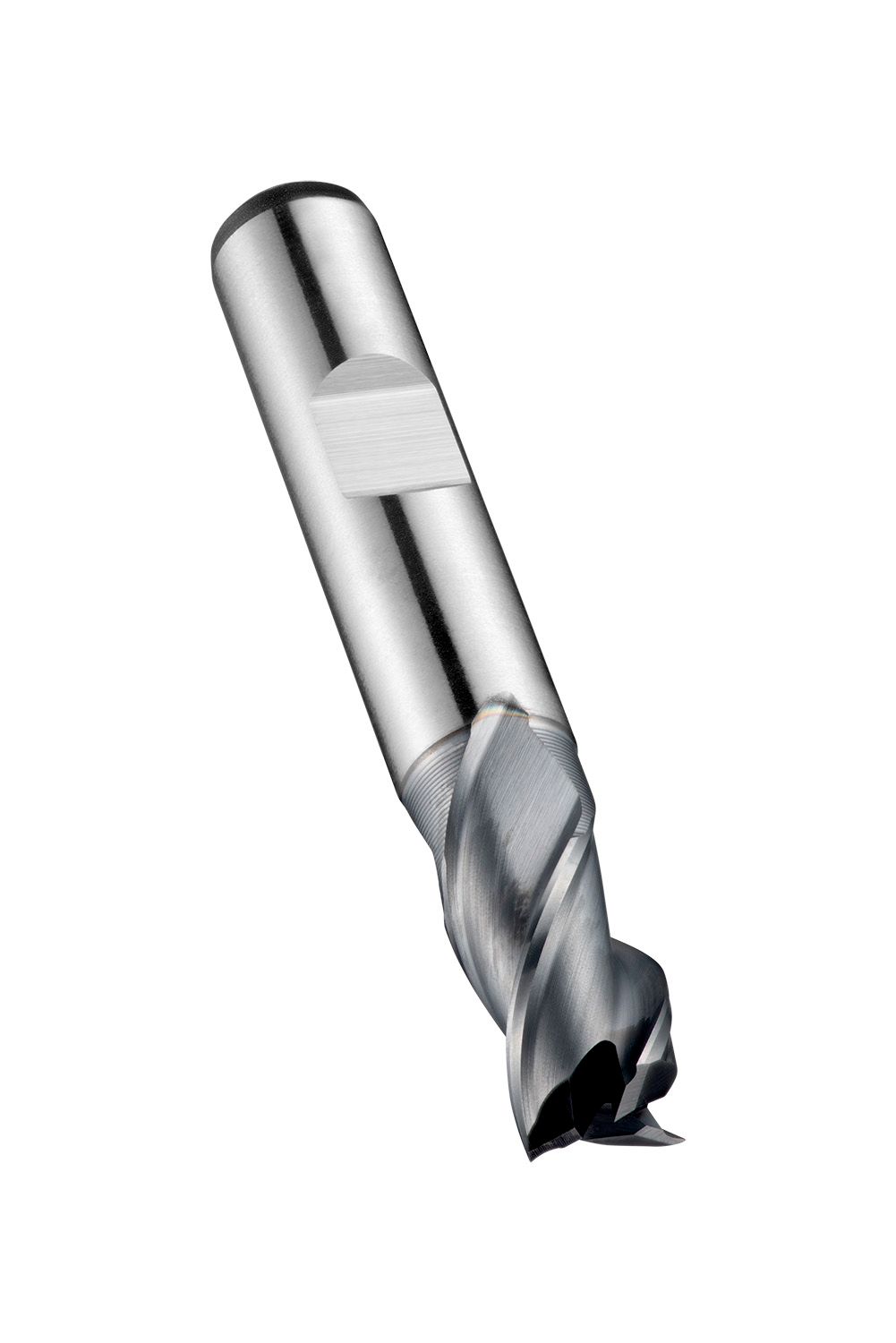

Extra short series slot drill with 3 flutes, diameter 16 mm with 19 mm length of cut, 79 mm overall length and 30.5 mm reach with neck relief, according to DIN 327 D standard with a 16 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 40° helix and 15° rake angle for shoulder milling, slot milling and ramping in free machining steel, stainless steel and wrought aluminium

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5984001
