Dormer-Pramet

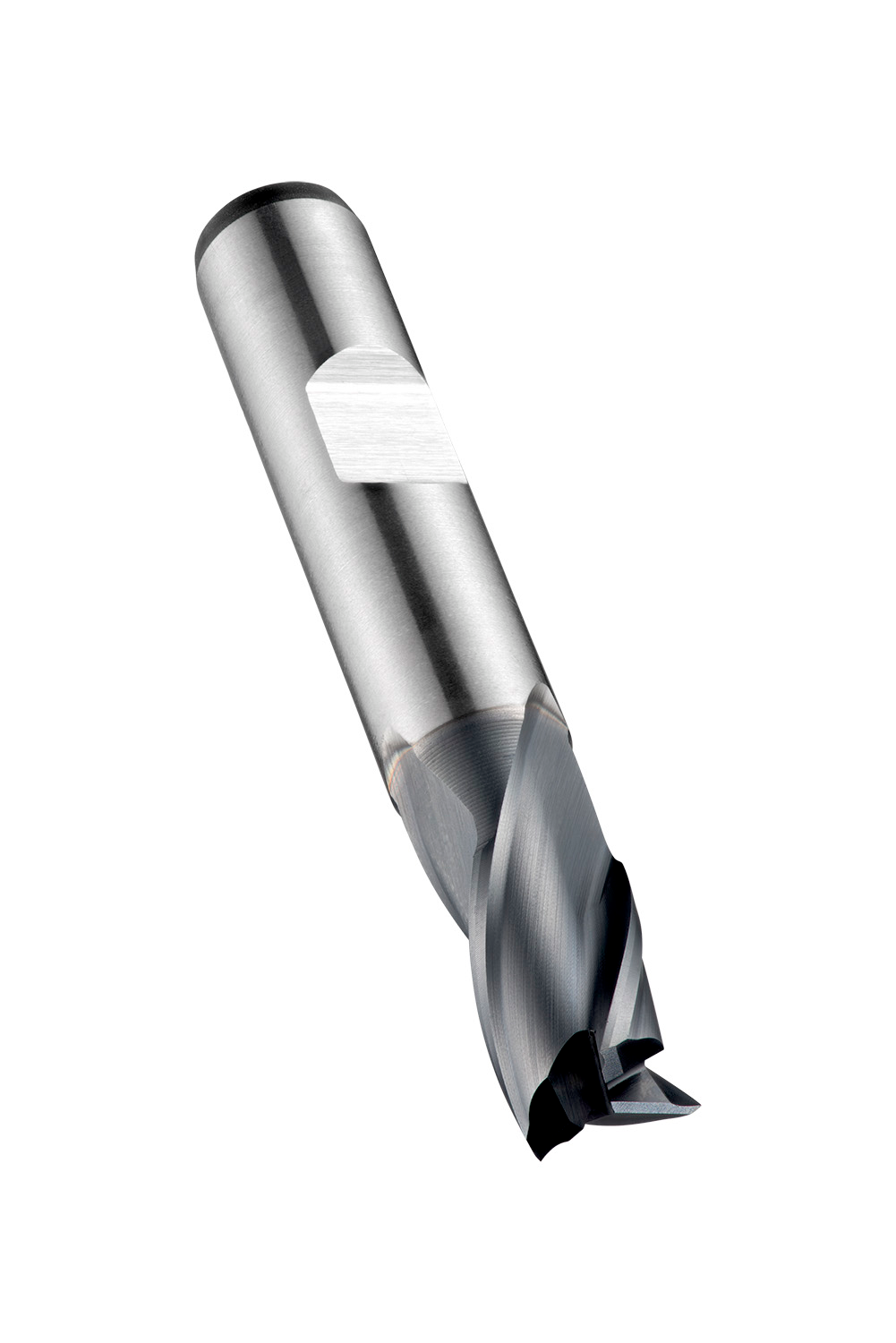

Extra short series slot drill with 3 flutes, diameter 15 mm with 16 mm length of cut, 73 mm overall length and 27.5 mm reach with neck relief, according to DIN 327 D standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5983960
