Dormer-Pramet

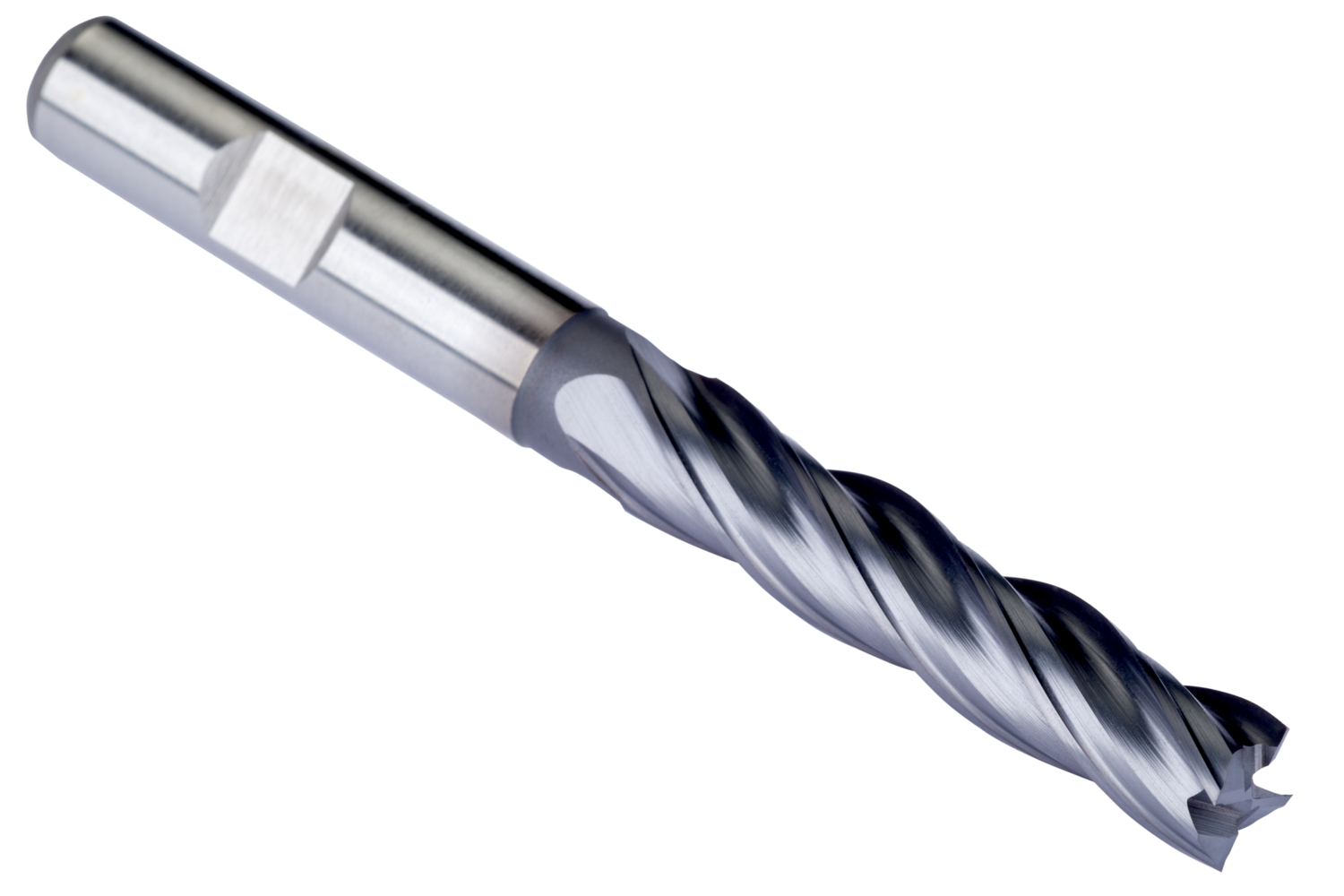

Long series end mill with 4 flutes, diameter 10 mm with 45 mm length of cut, 95 mm overall length and 54.5 mm reach with neck relief, according to DIN 844 L standard with a 10 mm Weldon shank, powder metallurgical HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling and slot milling in free machining, plain carbon and alloy steel, cast-iron, copper or copper alloys and titanium or titanium alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5983809
