Dormer-Pramet

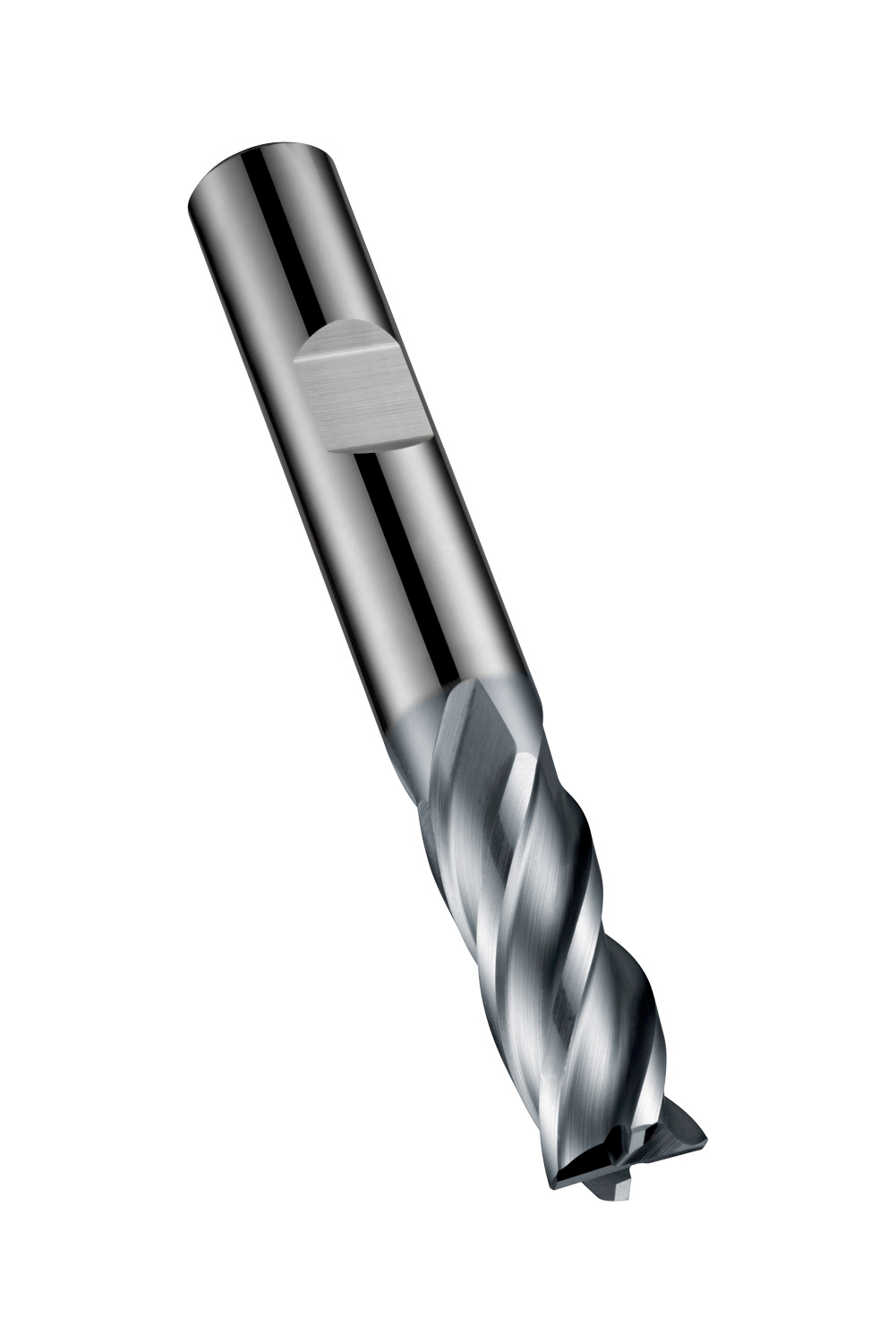

Short series end mill with 4 flutes, diameter 10 mm with 22 mm length of cut, 72 mm overall length and 0.2 mm 45° chamfered corner edges, according to DIN 6527 L standard with a 10 mm Weldon shank, solid carbide with AlCrN coating, 34° helix and 9° rake angle for shoulder milling and plunging in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and copper or copper alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5983604
