Dormer-Pramet

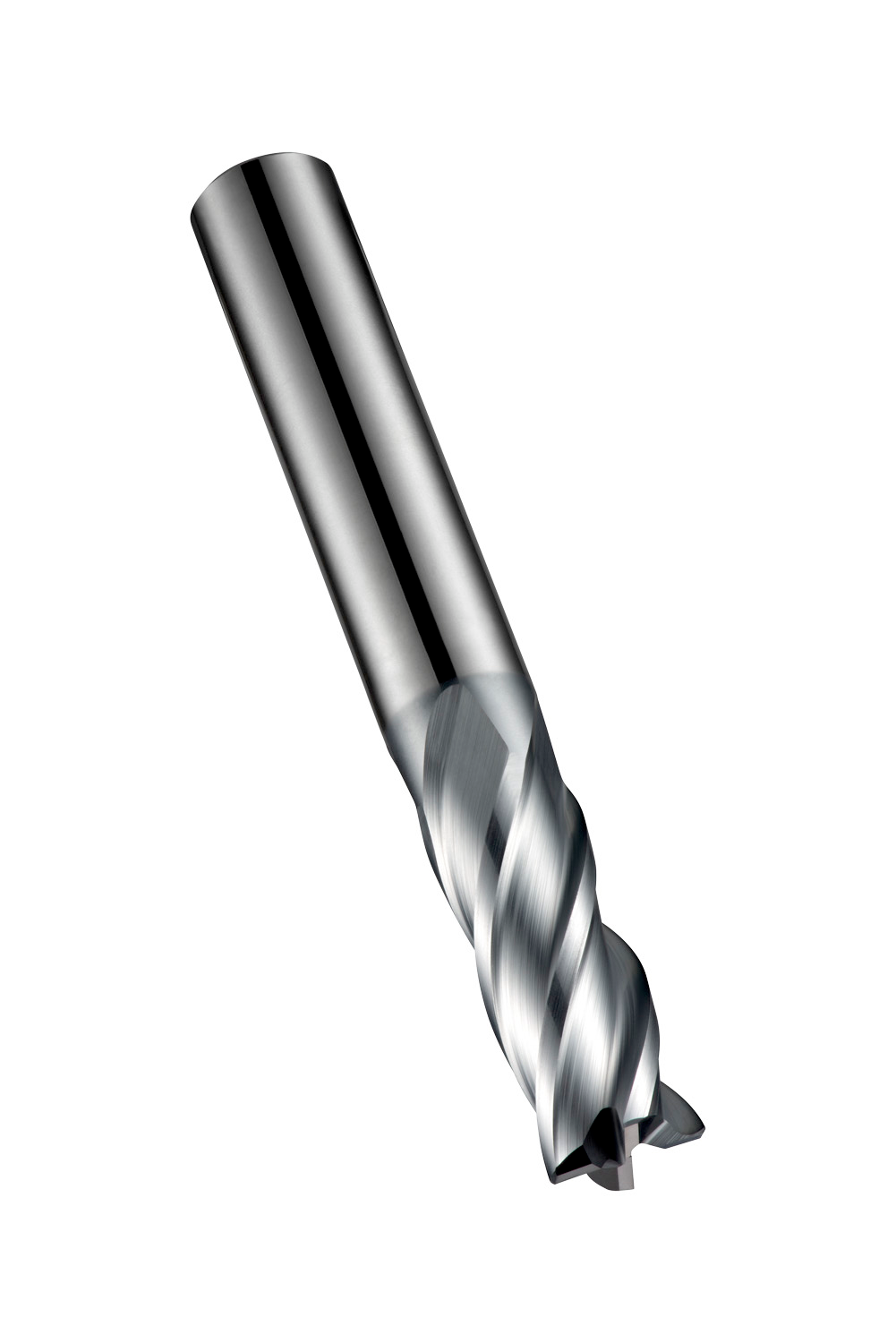

Short series end mill with 4 flutes, diameter 25 mm with 45 mm length of cut, 121 mm overall length and 0.3 mm 45° chamfered corner edges, according to DIN 6527 L standard with a 25 mm plain shank, solid carbide with AlCrN coating, 34° helix and 9° rake angle for shoulder milling and plunging in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and copper or copper alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5983582
