Dormer-Pramet

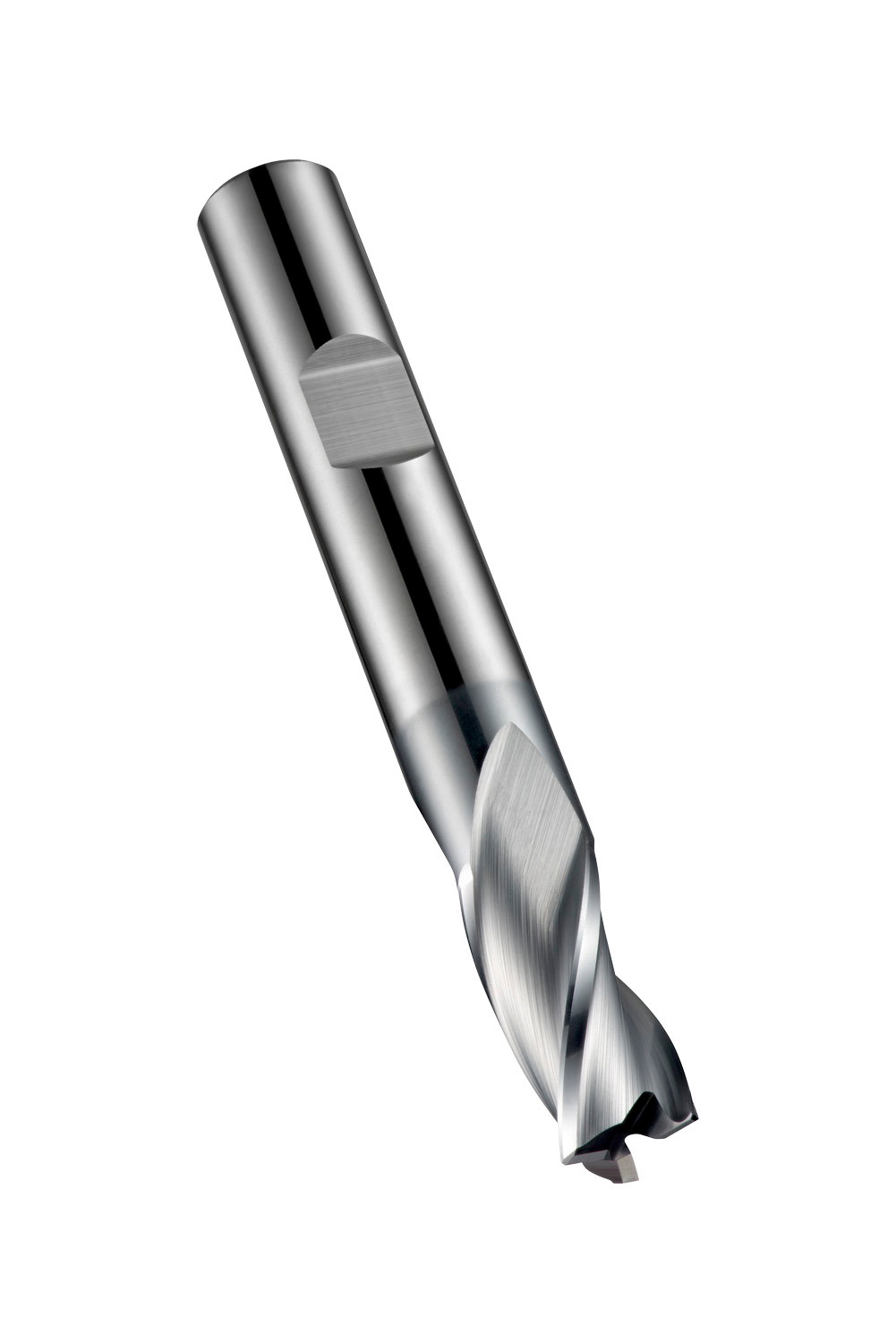

Short series slot drill with 3 flutes, diameter 20 mm with 32 mm length of cut, 104 mm overall length and 0.3 mm 45° chamfered corner edges, according to DIN 6527 L standard with a 20 mm Weldon shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, plunging, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5983533
