Dormer-Pramet

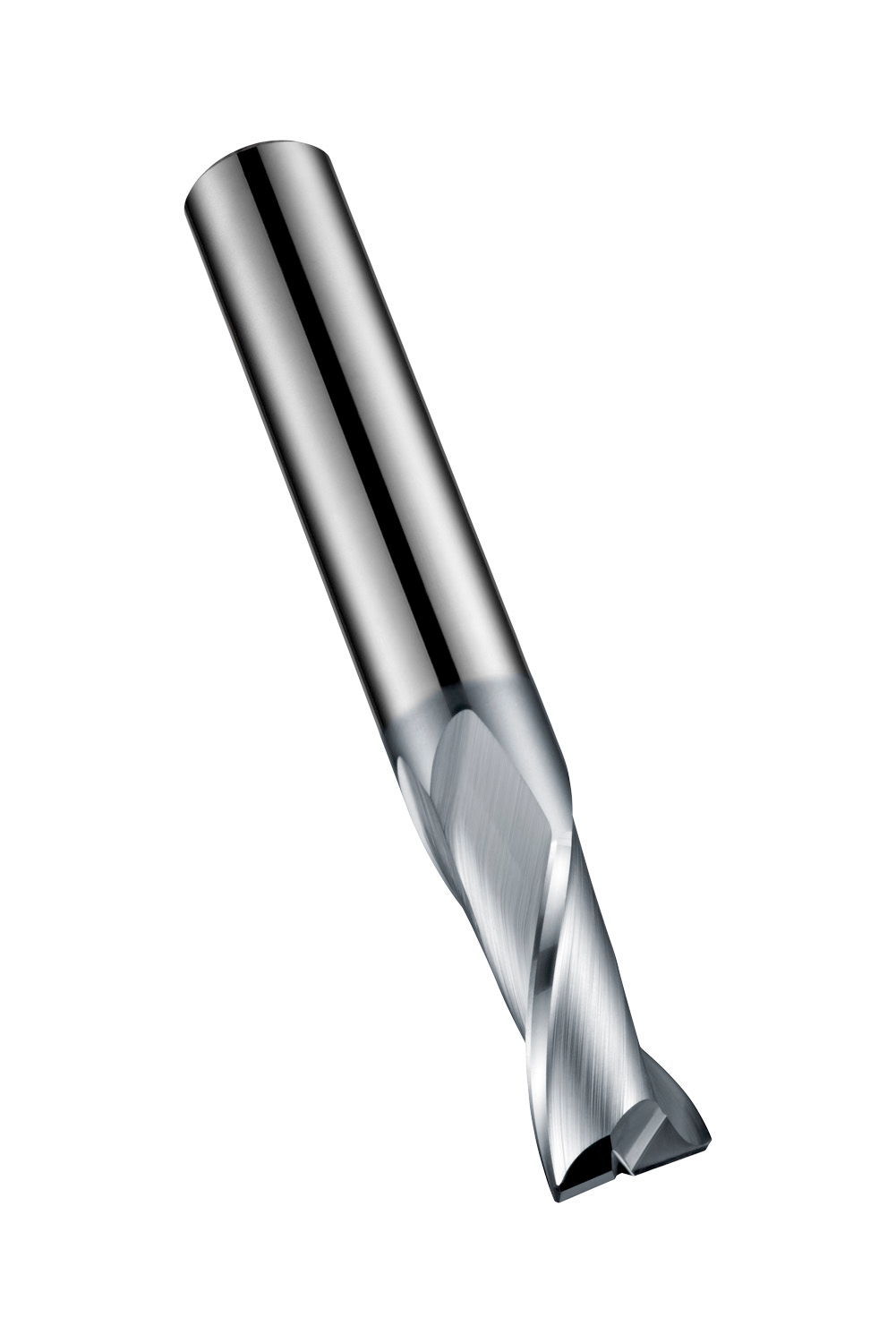

Short series slot drill with 2 flutes, diameter 4.5 mm with 8 mm length of cut, 57 mm overall length and 0.13 mm 45° chamfered corner edges, according to DIN 6527 L standard with a 6 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for slot milling and ramping in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5983526
