Dormer-Pramet

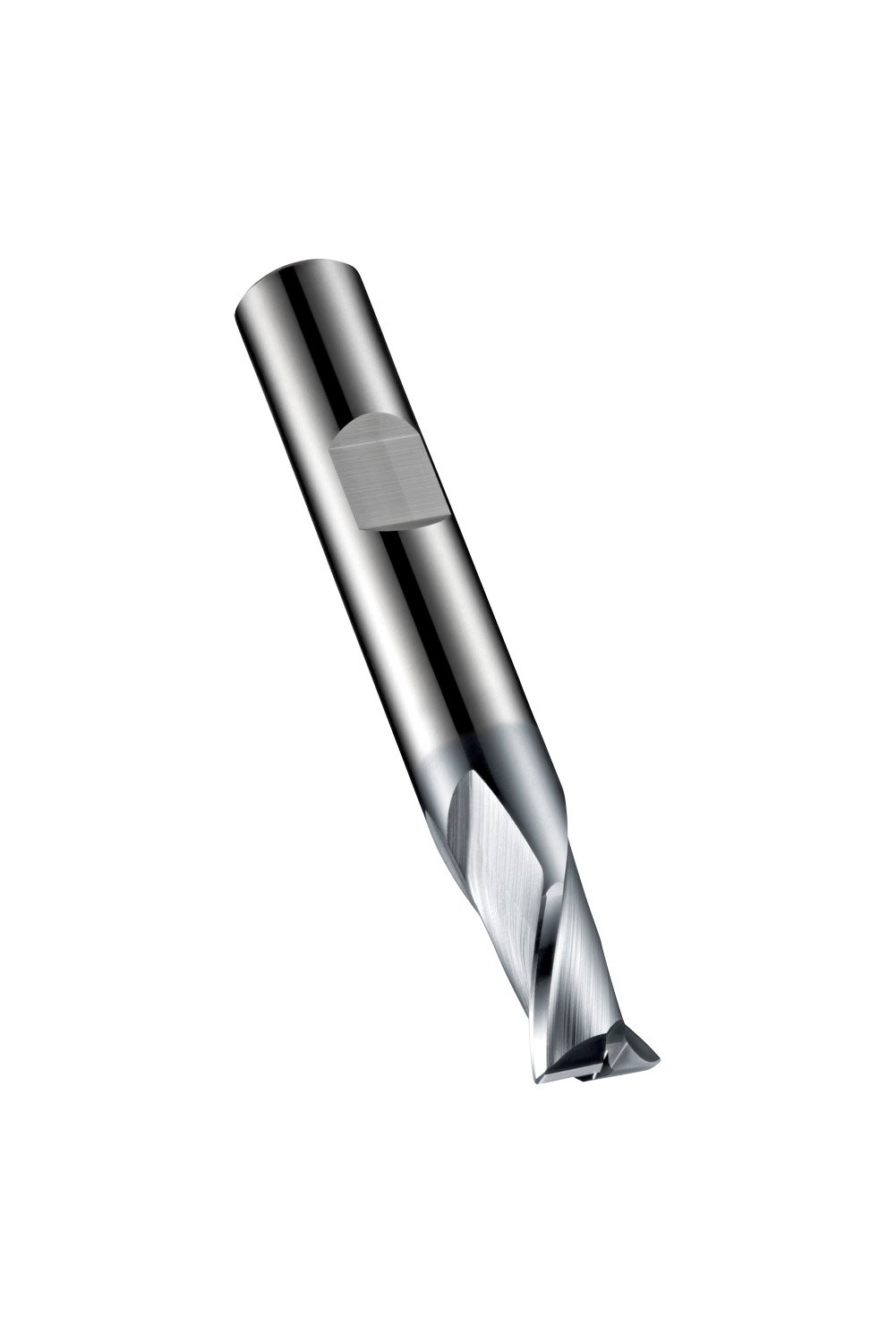

Extra short series slot drill with 2 flutes, diameter 9 mm with 10 mm length of cut, 66 mm overall length and 0.2 mm 45° chamfered corner edges, according to DIN 6527 K standard with a 10 mm Weldon shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for slot milling and ramping in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and cast aluminium and copper or copper alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5983297
