Dormer-Pramet

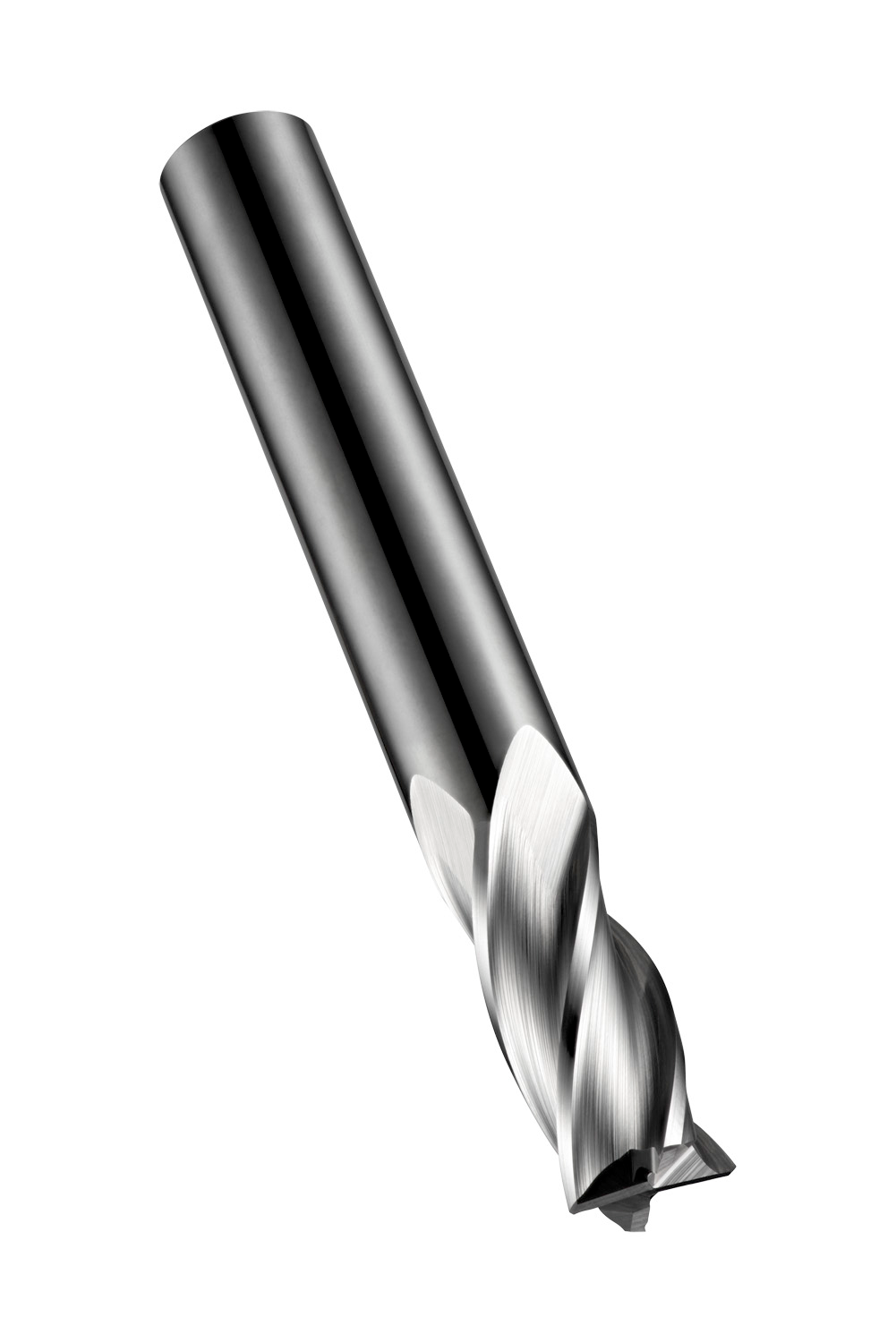

Regular length end mill with 4 flutes, diameter 2.5 mm with 9 mm length of cut, 38 mm overall length and 0.08 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with bright finish, 30° helix and 12° rake angle for shoulder milling in free machining, plain carbon and alloy steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5983162
