Dormer-Pramet

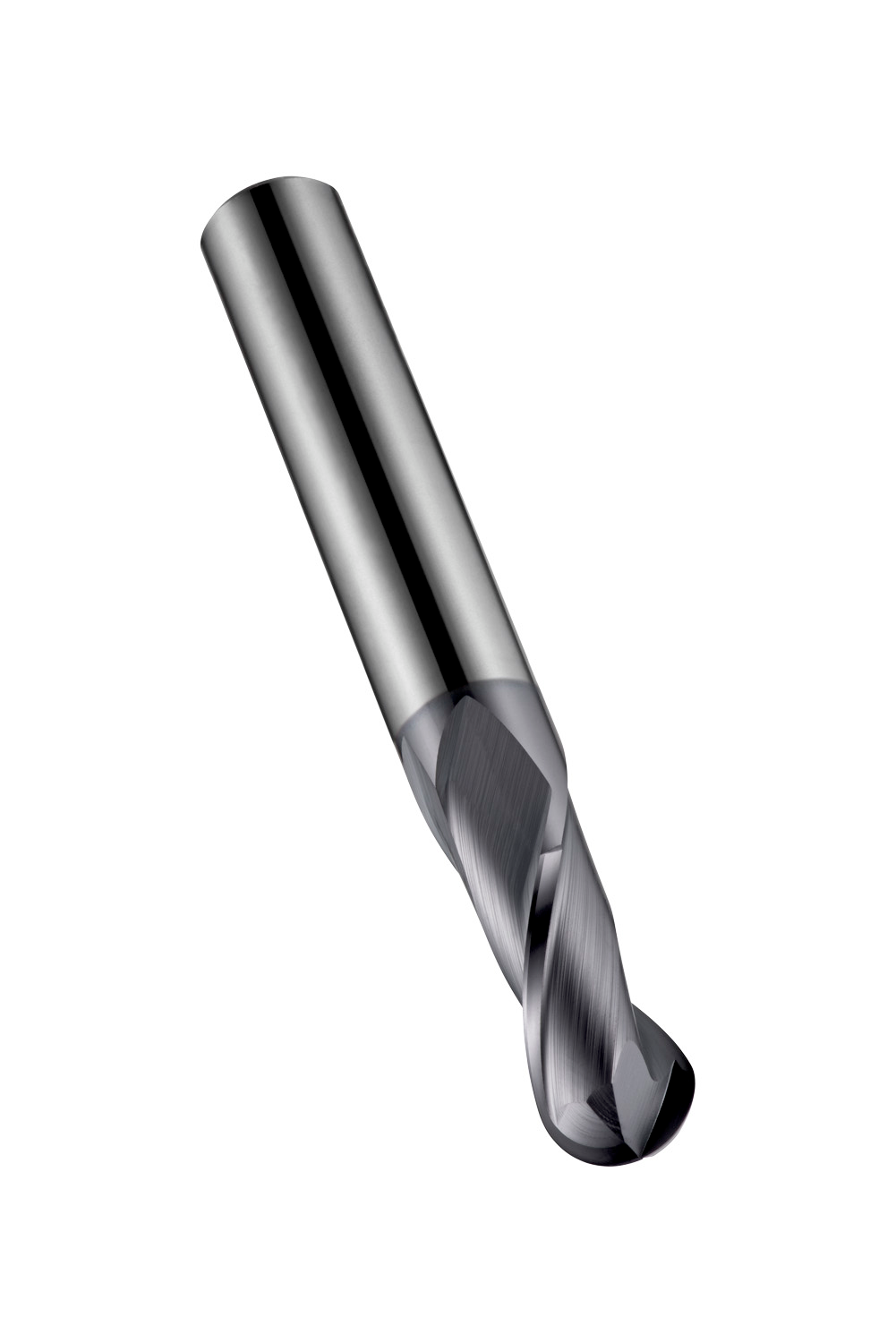

Short series ball-nose end mill with 2 flutes, diameter 16 mm with 26 mm length of cut, 92 mm overall length and 8 mm full profile radius, according to Dormer Pramet standard with a 16 mm plain shank, solid carbide with X-CEED coating, 30° helix and 10° rake angle for copy milling in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and copper or copper alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5983132
