Dormer-Pramet

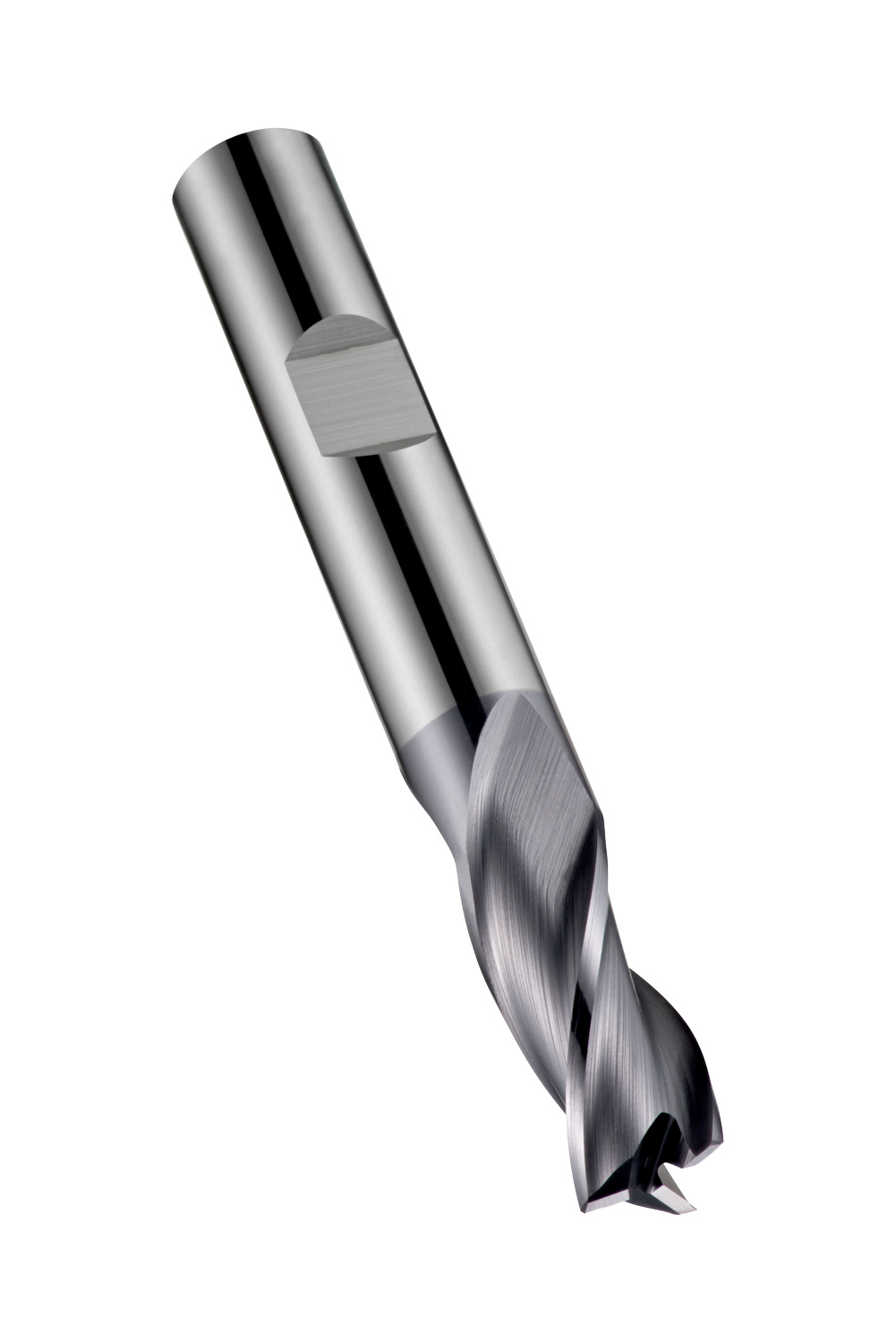

Regular length end mill with 3 flutes, diameter 20 mm with 38 mm length of cut, 104 mm overall length and 0.3 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 20 mm Weldon shank, solid carbide with TiAlN coating, 30° helix and 12° rake angle for shoulder milling and slot milling in steel and cast steel, cast-iron and cast aluminium and copper or copper alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5982820
