Dormer-Pramet

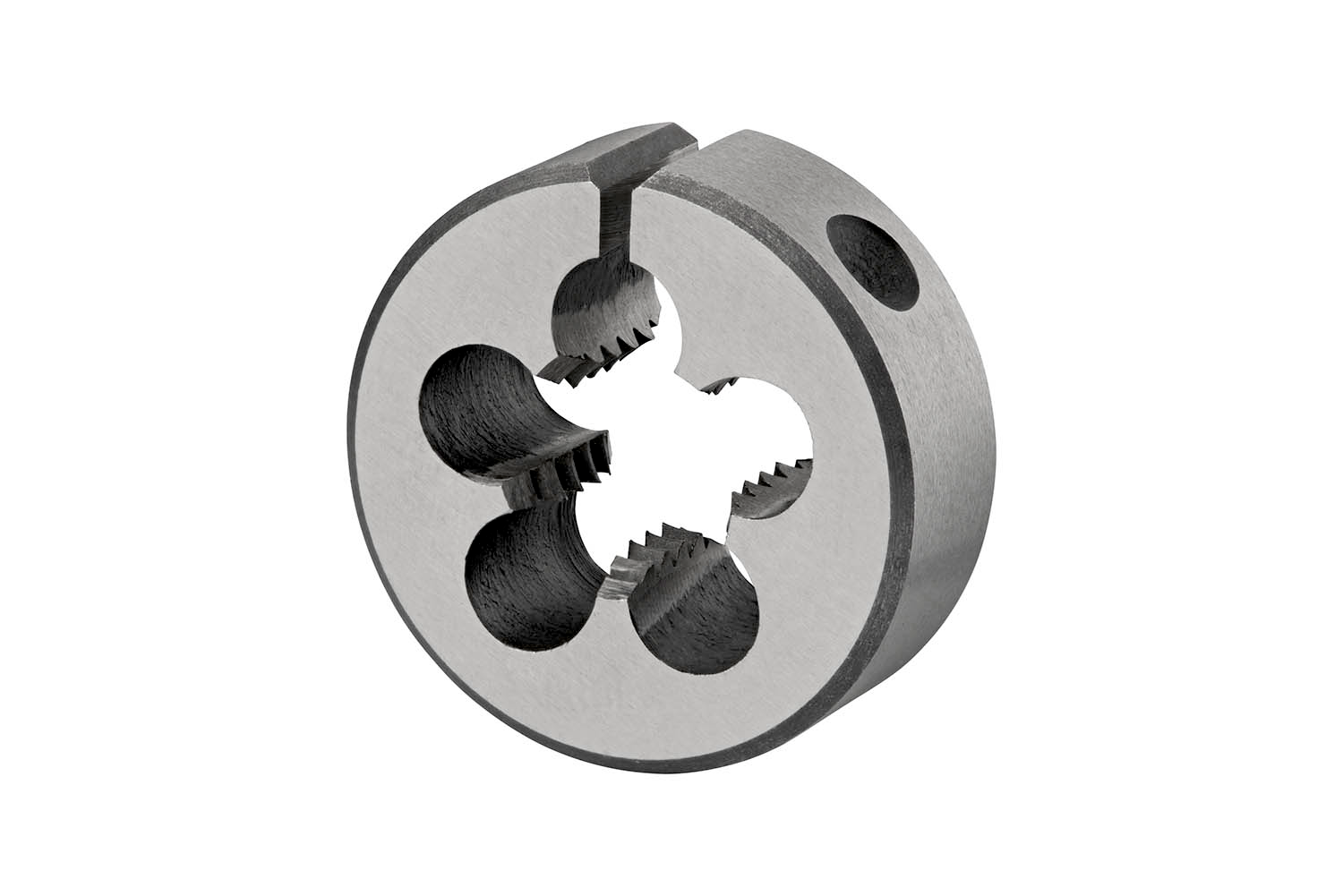

Adjustable circular split die, for British Standard Pipe thread G 3/8 inch with 19 TPI, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.006 inch, dimensions according to BS 1127:1950 standard with 1.1/2 inch outside diameter and 1/2 inch thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5978464
