Dormer-Pramet
E6511/4
Material ID: 5978353
Sale price
$34.78 CAD
Regular price
$62.60 CAD
E6511/4

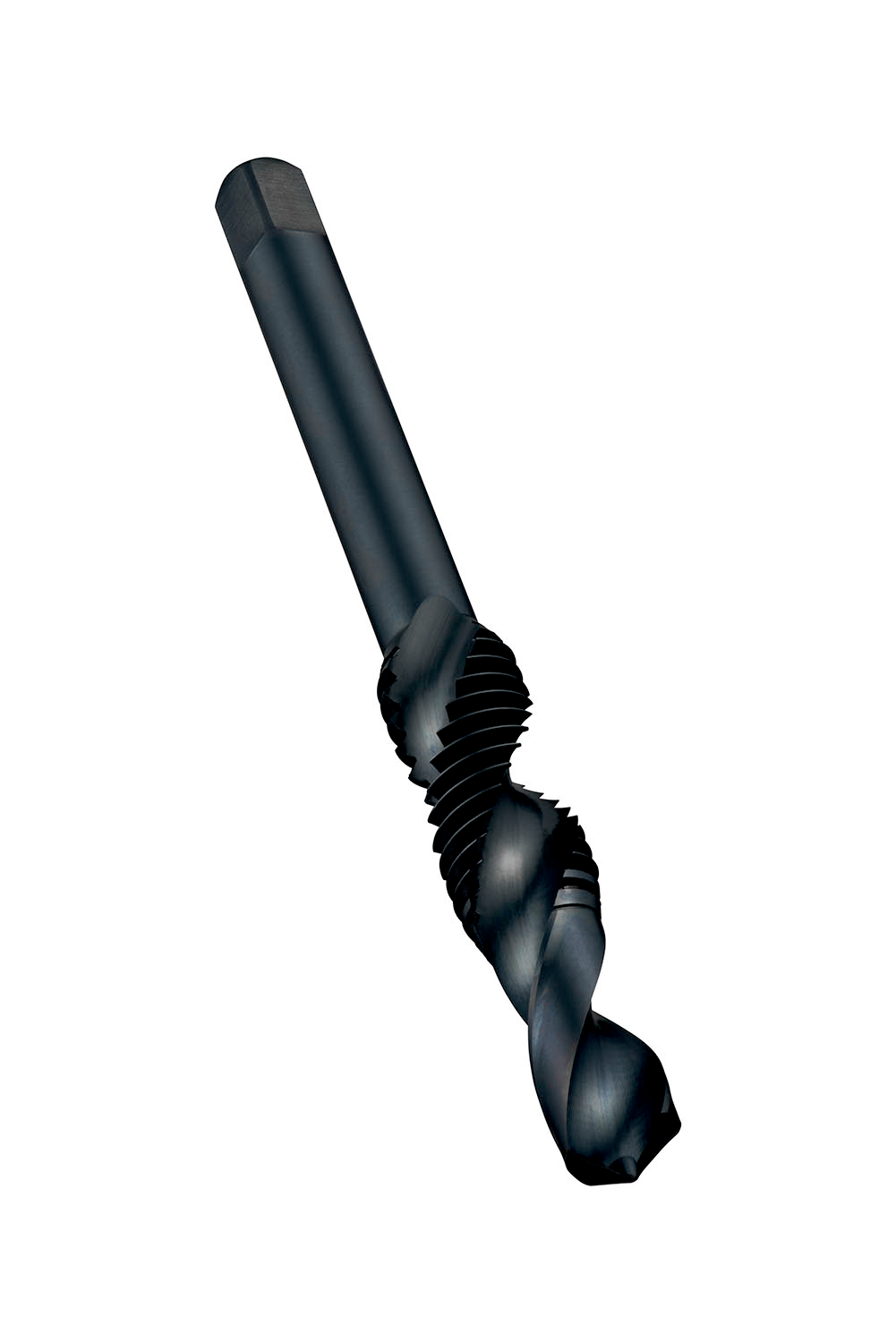

HSS Drill-Tap Combination Tool with 30° Spiral Flute, UNC, DIN Standard
Material ID: 5978353
Combination drill-tap with a 30° spiral flute, for Unified National Coarse thread UNC 1/4 inch with 20 TPI and 2B class of fit, dimensions according to Dormer Pramet standard with 6.3 mm shank and 5.0 mm square drive, HSS with steam tempered surface finish and 30° helix angle for 1.5xD through hole threading in free machining steel
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
